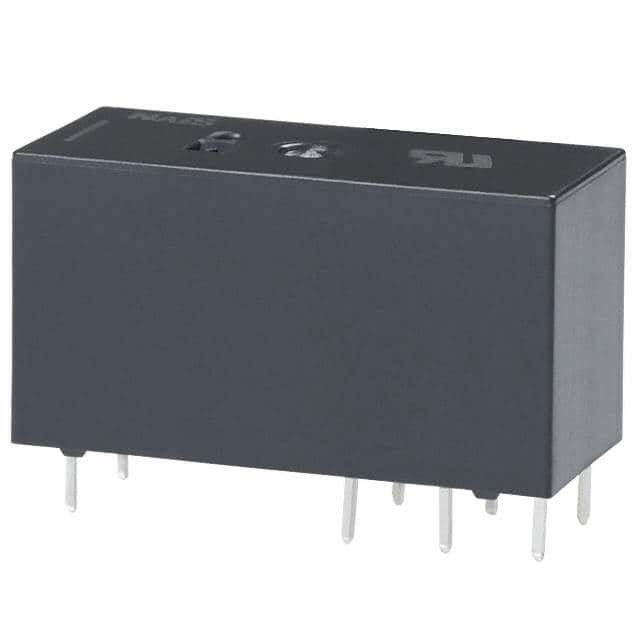

    ALZ12B24

    SKU: 58460
    Manufacturer: Panasonic
    Power Relay 24VDC 16A SPDT(28.8x12.5x15.7)mm THT
    Download sample
    Request Free Samples
    1600 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Unconfirmed
    HTS 8536.41.00.60
    Automotive No
    PPAP No
    Contact Arrangement SPDT
    Contact Form 1 Form C
    DC Coil Voltage (V) 24
    Coil Current (mA) 16.7
    Coil Resistance (Ohm) 1.44K
    Insulation Resistance (MOhm) 1000
    Maximum Contact Resistance (mOhm) 100
    Maximum Pick-Up Voltage 16.8VDC
    Minimum Dropout Voltage 2.4VDC
    Maximum AC Switching Voltage (V) 440
    Maximum Switching Current (A) 16
    Maximum Switching Power 4kVA
    Operate Time (ms) 15
    Release Time (ms) 5
    Electrical Life (Operations) 100000
    Mechanical Life (Operations) 10000000
    LED Indicator No
    Push to Test Button No
    Coil Suppression Diode No
    Relay Construction Non-Latching
    Terminal Form Through Hole
    Terminal Form PC Pin
    Number of Terminals 8
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Package Type DIP
    Product Weight (g) 12
    Length (mm) 28.8
    Depth (mm) 12.5
