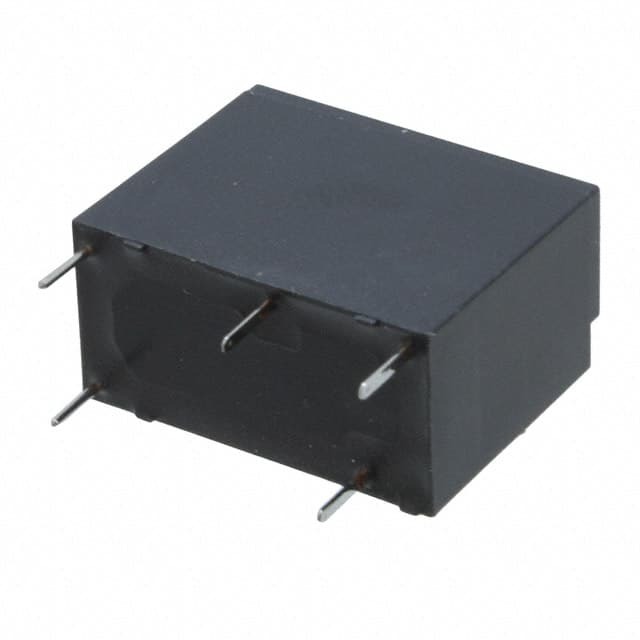

ALQ112

SKU: 51406

Manufacturer: Panasonic

Power Relay 12VDC 5(NO)/1(NC)DC/10(NO)/3(NC)AAC SPDT(20x10x16)mm THT

2020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.50
Automotive	No
PPAP	No
Contact Arrangement	SPDT
Contact Form	1 Form C
DC Coil Voltage (V)	12
Coil Current (mA)	33.3
Coil Resistance (Ohm)	360
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	100
Maximum Pick-Up Voltage	9VDC
Minimum Dropout Voltage	0.6VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	30
Maximum Switching Current (A)	10(NO)/3(NC)AC
Maximum Switching Power	0.5kVA(NC)
Operate Time (ms)	20
Release Time (ms)	20
Mechanical Life (Operations)	10000000
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	7
Length (mm)	20
Depth (mm)	10
