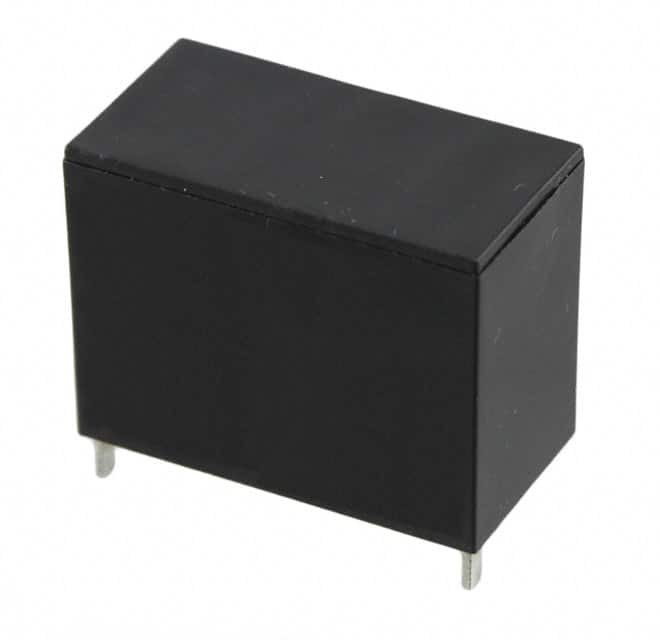

ALFG2PF121

SKU: 102577

Manufacturer: Panasonic

Power Relay 12VDC 33A SPST-NO(30.1x15.7x23.3)mm THT

1560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.80
Automotive	No
PPAP	No
Contact Arrangement	SPST-NO
Contact Form	1 Form A
DC Coil Voltage (V)	12
Coil Current (mA)	117
Coil Resistance (Ohm)	103
Maximum Pick-Up Voltage	8.4VDC
Minimum Dropout Voltage	1.2VDC
Maximum AC Switching Voltage (V)	250
Maximum Switching Current (A)	33
Maximum Switching Power	8.25kVA
Operate Time (ms)	20
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	4
Operating Temperature-Min	-40
Operating Temperature-Max	60
Product Weight (g)	23
Length (mm)	30.1
Depth (mm)	15.7
