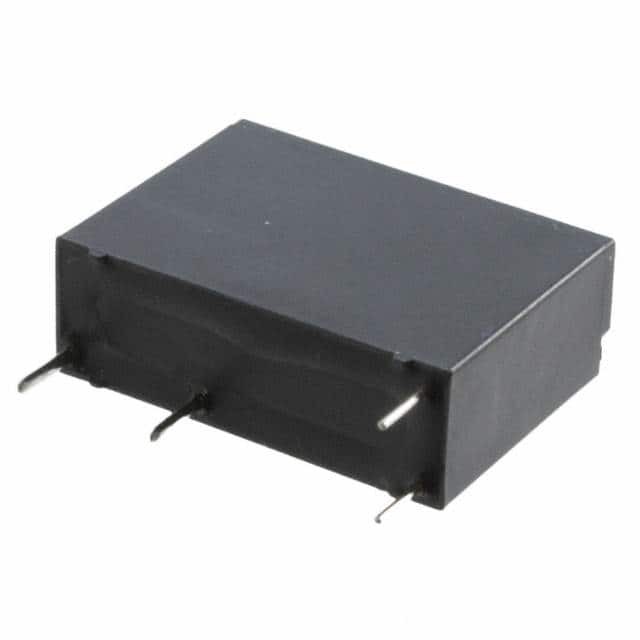

    ALDP105W

    SKU: 145105
    Manufacturer: Panasonic
    Power Relay 5VDC 5A SPST-NO(20.5x7.2x15.3)mm THT
    Download sample
    Request Free Samples
    54100 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8536.49.00.50
    Automotive No
    PPAP No
    Contact Arrangement SPST-NO
    Contact Form 1 Form A
    DC Coil Voltage (V) 5
    Coil Current (mA) 40
    Coil Resistance (Ohm) 125
    Insulation Resistance (MOhm) 1000(Min)
    Maximum Contact Resistance (mOhm) 100
    Maximum Pick-Up Voltage 3.75VDC
    Minimum Dropout Voltage 0.25VDC
    Maximum AC Switching Voltage (V) 277
    Maximum Switching Current (A) 5
    Maximum Switching Power 1.385kVA
    Operate Time (ms) 10
    Release Time (ms) 10
    Electrical Life (Operations) 200000
    Mechanical Life (Operations) 5000000
    LED Indicator No
    Push to Test Button No
    Coil Suppression Diode No
    Relay Construction Non-Latching
    Terminal Form Through Hole
    Terminal Form PC Pin
    Number of Terminals 4
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Product Weight (g) 4
    Length (mm) 20.5
    Depth (mm) 7.2
    • ALDP105W Price
    • ALDP Series
    • ALDP105W Datasheet
    • ALDP105W Application
    • ALDP105W Pdf
    • ALDP105W Pinout
    • ALDP105W Image
    • ALDP105W Picture
    • ALDP105W In Stock
    • ALDP105W Distributor
    • ALDP105W Panasonic
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8536.49.00.50
    Automotive No
    PPAP No
    Contact Arrangement SPST-NO
    Contact Form 1 Form A
    DC Coil Voltage (V) 5
    Coil Current (mA) 40
    Coil Resistance (Ohm) 125
    Insulation Resistance (MOhm) 1000(Min)
    Maximum Contact Resistance (mOhm) 100
    Maximum Pick-Up Voltage 3.75VDC
    Minimum Dropout Voltage 0.25VDC
    Maximum AC Switching Voltage (V) 277
    Maximum Switching Current (A) 5
    Maximum Switching Power 1.385kVA
    Operate Time (ms) 10
    Release Time (ms) 10
    Electrical Life (Operations) 200000
    Mechanical Life (Operations) 5000000
    LED Indicator No
    Push to Test Button No
    Coil Suppression Diode No
    Relay Construction Non-Latching
    Terminal Form Through Hole
    Terminal Form PC Pin
    Number of Terminals 4
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Product Weight (g) 4
    Length (mm) 20.5
    Depth (mm) 7.2
