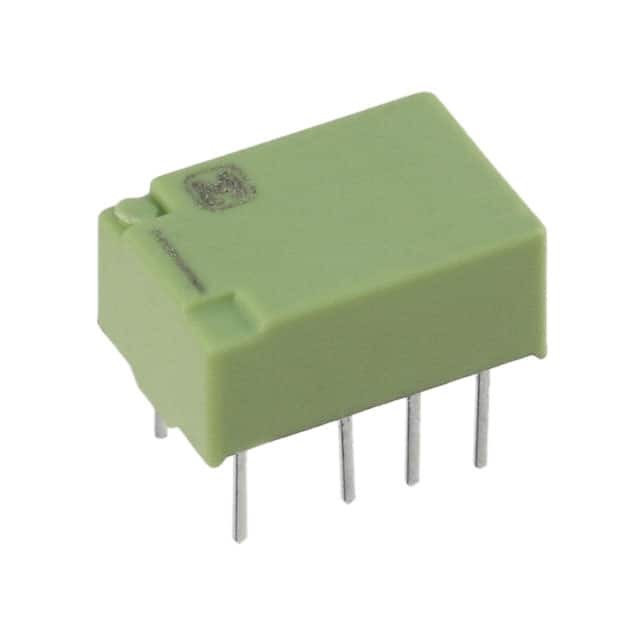

AGQ21003

SKU: 60356

Manufacturer: Panasonic

Signal Relay 3VDC 2A DPDT( (10.6mm 7.2mm 5.2mm)) THT

1930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.50
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	3
Coil Current (mA)	33.3
Coil Resistance (Ohm)	90
Maximum Pick-Up Voltage	2.25VDC
Minimum Dropout Voltage	2.25VDC
Maximum AC Switching Voltage (V)	125
Maximum DC Switching Voltage (V)	110
Maximum Switching Current (A)	2
Operate Time (ms)	4
Relay Construction	Latching Single Coil
Contact Body Material	Silver Palladium
Maximum Switching Power	30W
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	8
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	85
Package Type	DIP
Product Weight (g)	1
Length (mm)	10.6
Depth (mm)	7.2
