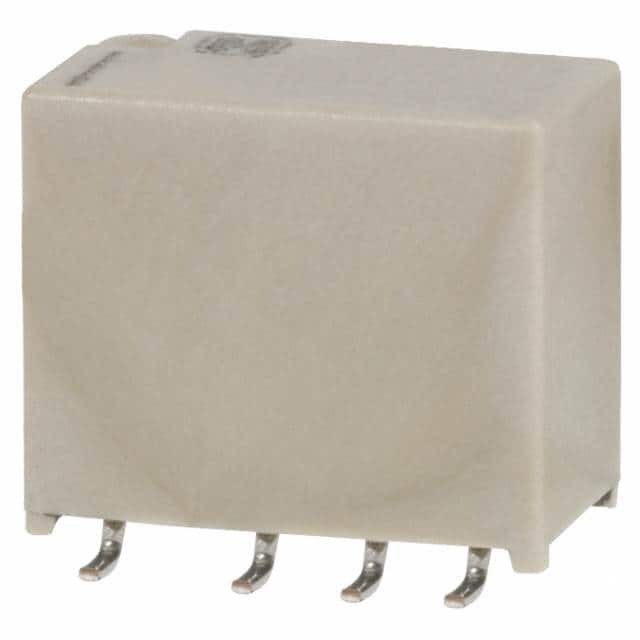

AGN210A12

SKU: 107779

Manufacturer: Panasonic

Signal Relay 12VDC 1.44kOhm 1A Dpdt(10.6mm 7.4mm 10Mm) SMD General Purpose Relay

3140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	12
Coil Current (mA)	8.3
Coil Resistance (Ohm)	1.44K
Maximum Pick-Up Voltage	9VDC
Maximum AC Switching Voltage (V)	125
Maximum DC Switching Voltage (V)	110
Operate Time (ms)	4
Relay Construction	Latching Single Coil
Contact Body Material	Silver Palladium
Maximum Switching Power	37.5VA
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	8
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	1
Length (mm)	10.6
Depth (mm)	7.4
