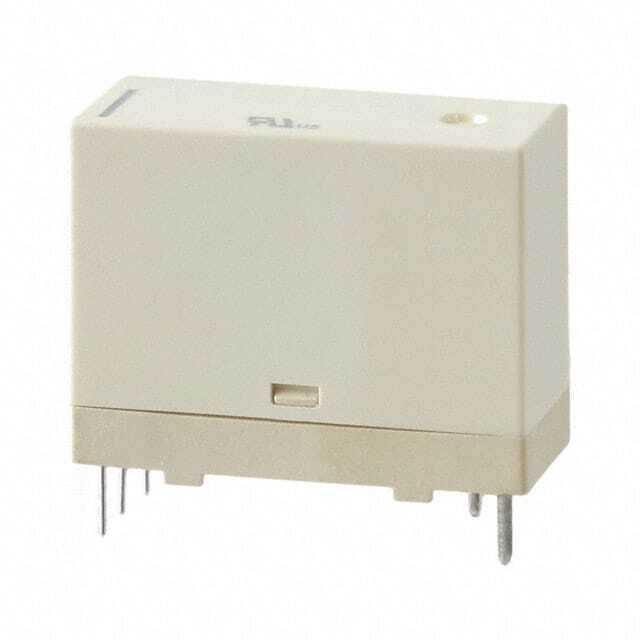

ADW1203W Panasonic

ADW1203W

SKU: 72465

Manufacturer: Panasonic

Power Relay 3VDC 8A SPST-NO(24x10x18.8)mm THT

Download sample

Request Free Samples

3560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Contact Arrangement	SPST-NO
Contact Form	1 Form A
DC Coil Voltage (V)	3
Coil Current (mA)	133.3
Coil Resistance (Ohm)	22.5
Maximum Pick-Up Voltage	2.4VDC
Minimum Dropout Voltage	2.4VDC
Maximum AC Switching Voltage (V)	250
Maximum Switching Current (A)	8
Maximum Switching Power	2kVA
Operate Time (ms)	15
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Latching Double Coil
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	8
Length (mm)	24
Depth (mm)	10
