6TPF330M9L

SKU: 95038

Manufacturer: Panasonic

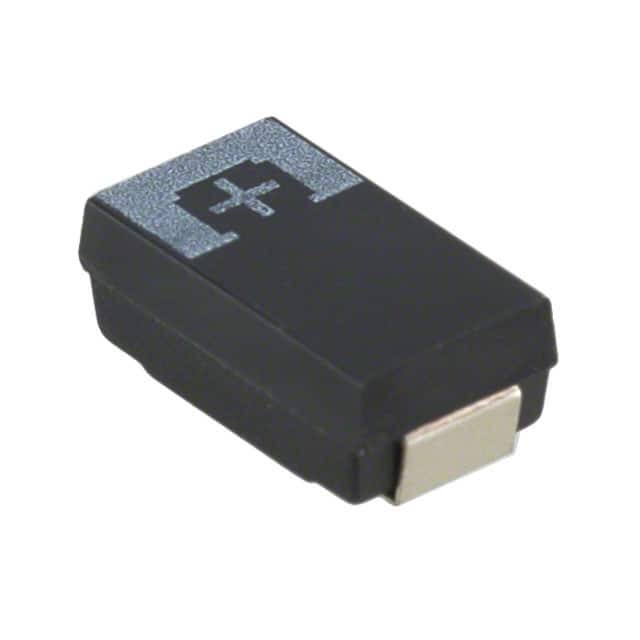

Cap Tant Polymer 330uF 6.3VDC D3L CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343 0.009 Ohm 105°C T/R

630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.21.00.80
Automotive	No
PPAP	No
Type	Polymer
Capacitance Value	330uF
Tolerance	20%
Voltage	6.3VDC
ESR (Ohm)	0.009
Equivalent Series Resistance Type	Super Low
IR (mA)	3900
IL (uA)	207.9
Polarity	Polar
Maximum Dissipation Factor (%)	10
Special Features	High Capacitance
Fail Safe with Built-in Fuse	No
High Shock and Vibrating	No
Case Code	D3L
Case Style	Molded
Construction	Flat
Terminal Form	Surface Mount
Number of Terminals	2
Maximum Terminal Width (mm)	4.5
Size (mm)	7.3 X 4.3 X 2.8
Case Code - in	7343
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	7.3
Depth (mm)	4.3
