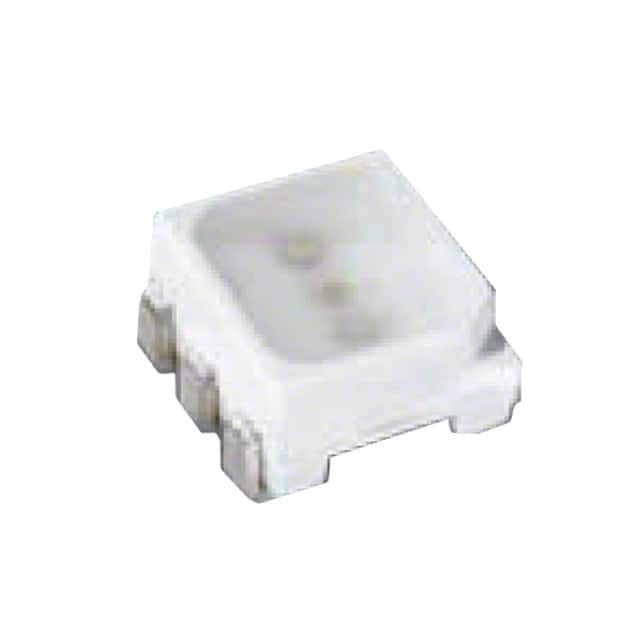

LTRBGFSF-ABCB-QKYO-Z

SKU: 69721

Manufacturer: OSRAM Opto Semiconductors

LED Low-Power Tri-Color Blue/True Green/Red 465nm/523nm/632nm 3.2V/3.2V/2.05V Automotive 6-Pin PLCC T/R

1620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.40.20.00
Automotive	Yes
PPAP	Unknown
Type	Tri-Color
Product Category	Chip LED
Color	Blue/Green/Red
Number of LEDs	3
LED Body Material	InGaN
Lens Shape Type	Circular
Lens Appearance	Diffused
Mounting Orientation	Top Mount
Intensity	160mcd
Dominant Wavelength (nm)	460/530/625
Peak Wavelength (nm)	465/523/632
Viewing Angle (°)	120
Maximum Forward Current (mA)	50/50/40
Test Current (mA)	20
Maximum Forward Voltage (V)	3.7/3.7/2.4
Reverse Voltage (V)	5/5/12
Minimum Forward Voltage (V)	2.9/2.9/1.8
Typical Forward Voltage (V)	3.2/3.2/2.05
Maximum Junction Temperature (°C)	125
Internal Protection	No
Operating Temperature-Min	-40
Operating Temperature-Max	100
Lead Standoff	No
Supplier Color	Blue/True Green/Red
Special Color	Blue/True Green/Red
High Power	No
High Brightness	Yes
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	LCC
Original Package	PLCC
Terminal Form	Surface Mount
Package Height	2(Max)
Package Length	3.5(Max)
Package Width	3.2(Max)
PCB changed	6
