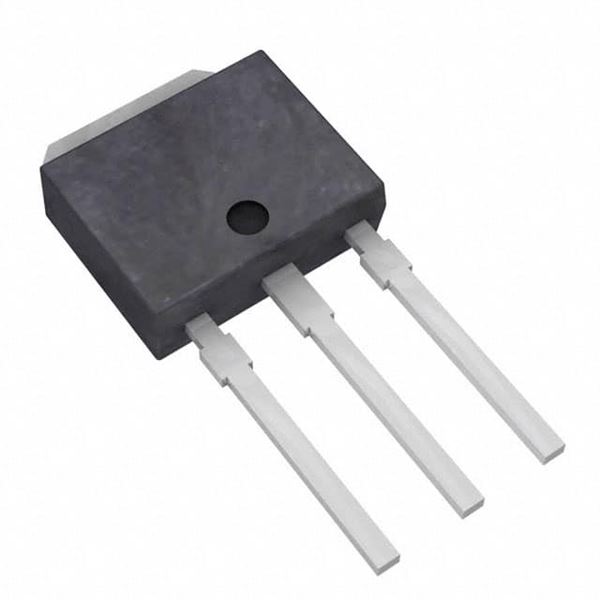

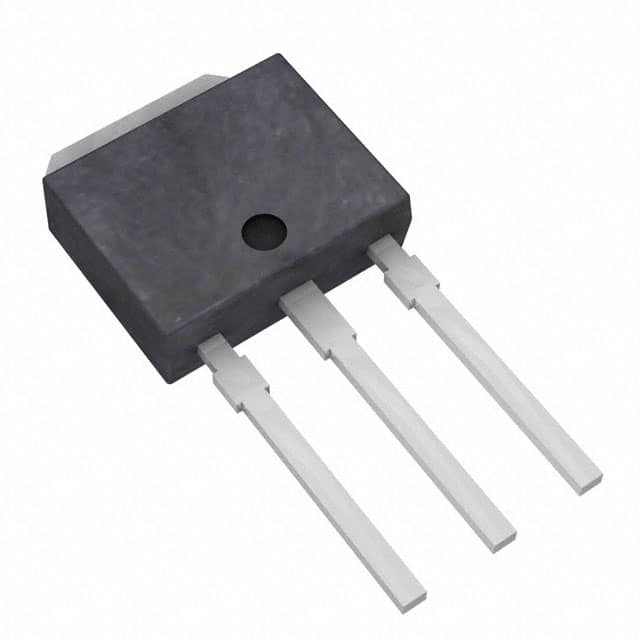

UD0506T-H

SKU: 45481

Manufacturer: onsemi

Rectifier Diode Switching 600V 5A 150ns 3-Pin(3+Tab) IPAK Bag

2630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Maximum Continuous Forward Current (A)	5
Peak Non-Repetitive Surge Current (A)	40
Peak Forward Voltage (V)	1.3
Peak Reverse Current (uA)	10
Peak Reverse Recovery Time (ns)	150
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Bag
Original Package	IPAK
Pin Count	3
Standard Package Method	TO-251
Terminal Form	Through Hole
Package Height	5.5
Package Length	6.5
Package Width	2.3
PCB changed	3
Tab	Tab
