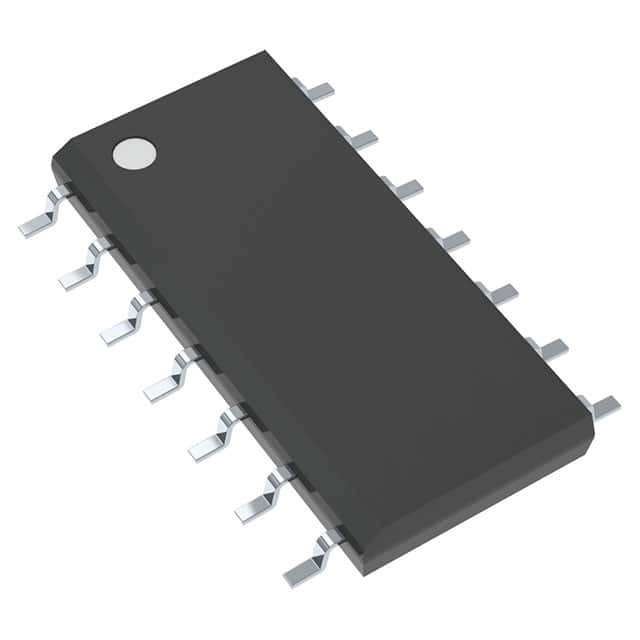

UC3842BDR2

SKU: 64886

Manufacturer: onsemi

Current Mode PWM Controller 1A 500kHz 14-Pin SOIC N T/R

2590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Current Mode PWM Controller
Control Method	Current Mode PWM Controller
Topology	Flyback
Number of PWM Outputs	1
Switching Frequency (kHz)	500
Maximum Duty Cycle (%)	96(Typ)
Rise Time (ns)	50
Output Current (mA)	1000(Max)
Fall Time (ns)	50
Operating Supply Voltage-Max (V)	30
Maximum Supply Current (mA)	12(Typ)
Maximum Power Dissipation (mW)	862
Adjustable Output	No
On/Off Pin	No
Synchronous Pin	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	14
