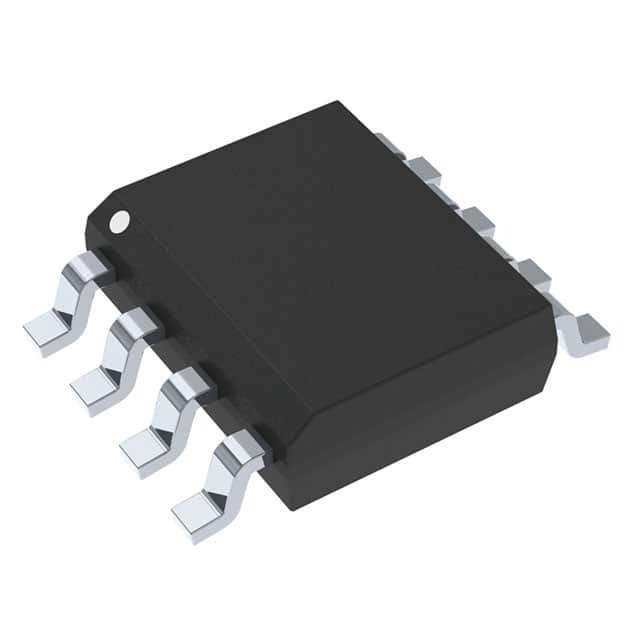

TL431BCD

SKU: 99859

Manufacturer: onsemi

V-Ref Adjustable 2.495V to 36V 100mA Automotive 8-Pin SOIC N Rail

2480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Reference Type	Adjustable
Topology	Shunt
Initial Accuracy	0.4%
Maximum Temperature Coefficient	50ppm/°C(Typ)
Output Voltage (V)	2.495 to 36
Maximum Input Voltage (V)	37
Maximum Output Current (mA)	100
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Rail
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
