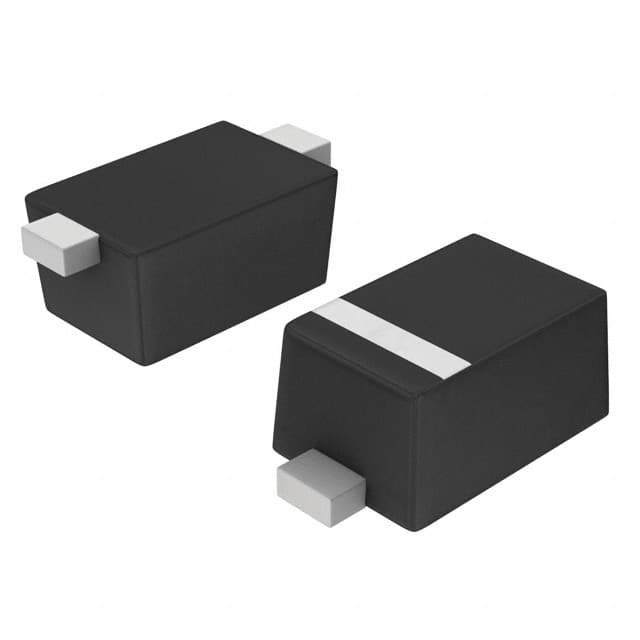

SZESD5Z2.5T1G

SKU: 121017

Manufacturer: onsemi

ESD Suppressor Diode TVS Uni-Dir 2.5V Automotive 2-Pin SOD-523 T/R

930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
Automotive	Yes
PPAP	Yes
Type	TVS
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Maximum Response Time (ns)	1(Typ)
Maximum Working Voltage (V)	2.5
Maximum Clamping Voltage (V)	10.9
Maximum Leakage Current (uA)	6
Maximum Power Dissipation (mW)	500
Peak Pulse Power Dissipation (W)	120
Capacitance Value (pF)	145(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SOD-523
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Height	0.6
Package Length	1.2
Package Width	0.8
PCB changed	2
