SURD8530T4G

SKU: 128033

Manufacturer: onsemi

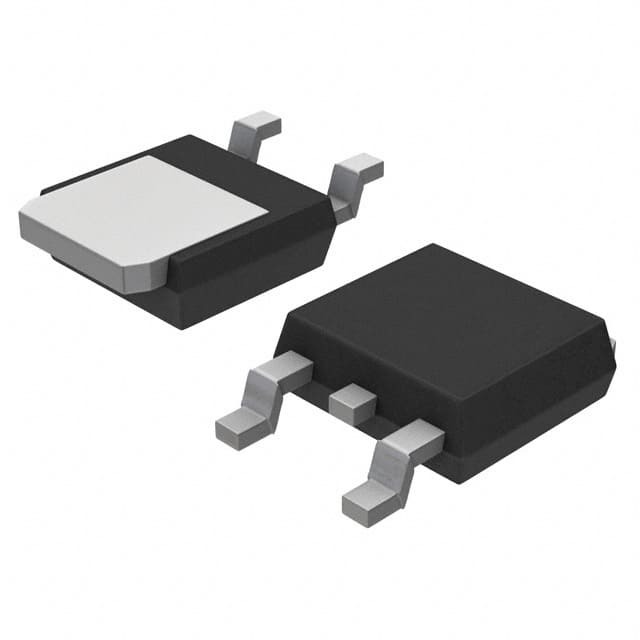

Rectifier Diode Switching 300V 5A 50ns Automotive 3-Pin(2+Tab) DPAK T/R

1430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Yes
Type	Switching Diode
Maximum DC Reverse Voltage (V)	300
Configuration	Single Dual Anode
Peak Reverse Repetitive Voltage (V)	300
Maximum Continuous Forward Current (A)	5
Peak Non-Repetitive Surge Current (A)	75
Peak Forward Voltage (V)	1.05
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	50
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Pin Count	3
Standard Package Method	TO-252
Original Package	DPAK
Terminal Form	Surface Mount
Package Height	2.38(Max)
Package Length	6.73(Max)
Package Width	6.22(Max)
PCB changed	2
Tab	Tab
