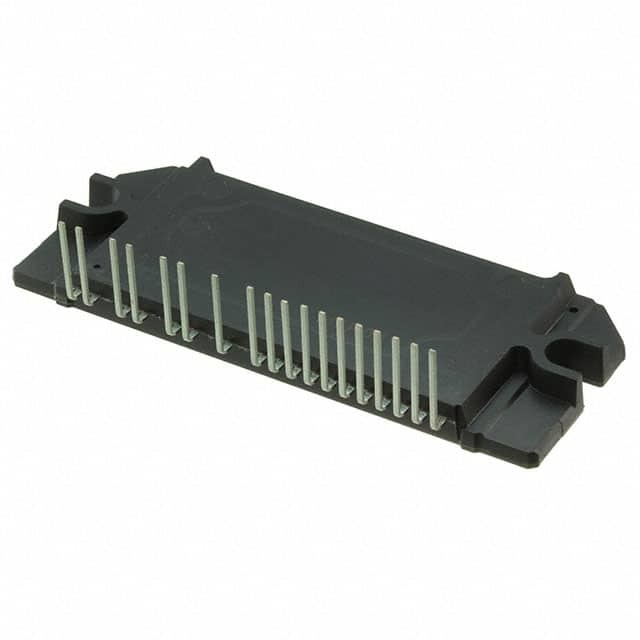

STK581U3C2D-E onsemi

STK581U3C2D-E

SKU: 137216

Manufacturer: onsemi

IPM IGBT 600V 30A 18-Pin(18+Tab) SIP Tube

Download sample

Request Free Samples

1640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	IGBT
Configuration	Hex
Number of Phases	Three
Protection Type	Over Current/Under Voltage
Collector-Emitter Voltage-Max (V)	600
Typical Collector Emitter Saturation Voltage (V)	2.1
Maximum Continuous Collector Current (A)	30
Maximum Isolation Voltage (Vrms)	2000
Maximum Collector-Emitter Cut-Off Current (mA)	0.1
Maximum Power Dissipation (W)	49
Operating Temperature-Min	-40
Operating Temperature-Max	100
Original Package	SIP
Pin Count	18
Standard Package Method	SIP
Terminal Form	Through Hole
Package Height	6
Package Length	78
Package Width	31.6
PCB changed	18
Tab	Tab
