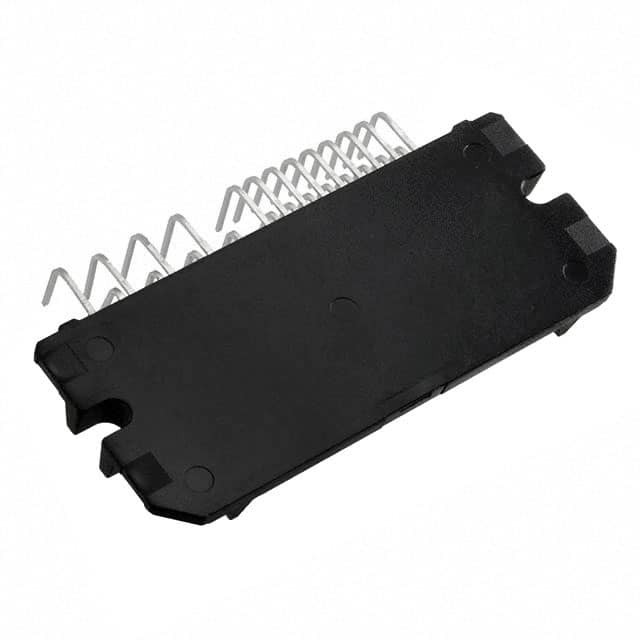

    STK57FU394AG-E

    SKU: 16924
    Manufacturer: onsemi
    IPM IGBT 600V 36A 35-Pin SIP Tube
    Request Free Samples
    1120 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    Automotive No
    PPAP No
    Type IGBT
    Configuration Hex
    Number of Phases Three
    Protection Type Over Current
    Collector-Emitter Voltage-Max (V) 600
    Typical Collector Emitter Saturation Voltage (V) 1.9
    Maximum Continuous Collector Current (A) 36
    Maximum Isolation Voltage (Vrms) 2000
    Maximum Collector-Emitter Cut-Off Current (mA) 0.1
    Maximum Power Dissipation (W) 73
    Operating Temperature-Min -30
    Operating Temperature-Max 100
    Packing Method Tube
    Original Package SIP
    Pin Count 35
    Standard Package Method SIP
    Terminal Form Through Hole
    Package Height 5.5
    Package Length 62
    Package Width 25.8
    PCB changed 35
