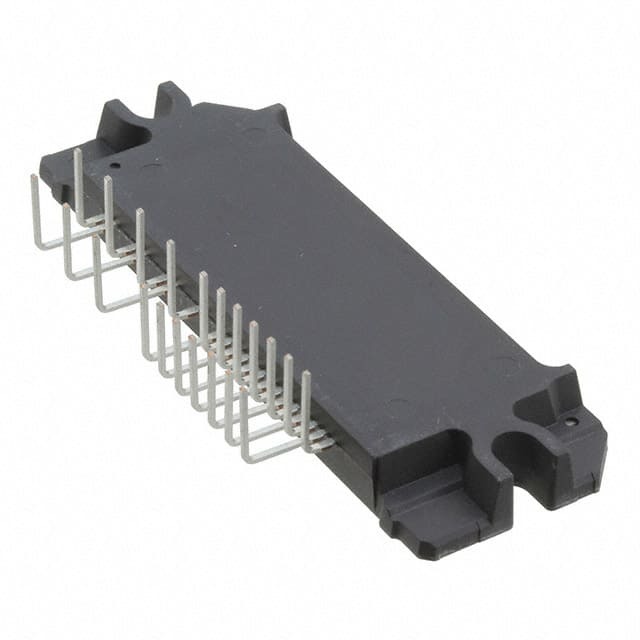

STK551U3A2A-E onsemi

STK551U3A2A-E

SKU: 144265

Manufacturer: onsemi

IPM IGBT 600V 20A 21-Pin(21+Tab) SIP Module Tube

Download sample

Request Free Samples

1320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	IGBT
Configuration	Hex
Number of Phases	Three
Protection Type	Over Current/Under Voltage
Collector-Emitter Voltage-Max (V)	600
Typical Collector Emitter Saturation Voltage (V)	2.3
Maximum Continuous Collector Current (A)	20
Maximum Isolation Voltage (Vrms)	2000
Maximum Collector-Emitter Cut-Off Current (mA)	0.1
Maximum Power Dissipation (W)	39
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Tube
Original Package	SIP Module
Pin Count	21
Standard Package Method	SIP Module
Terminal Form	Through Hole
Package Height	5.7
Package Length	62
Package Width	22.3
PCB changed	21
Tab	Tab
