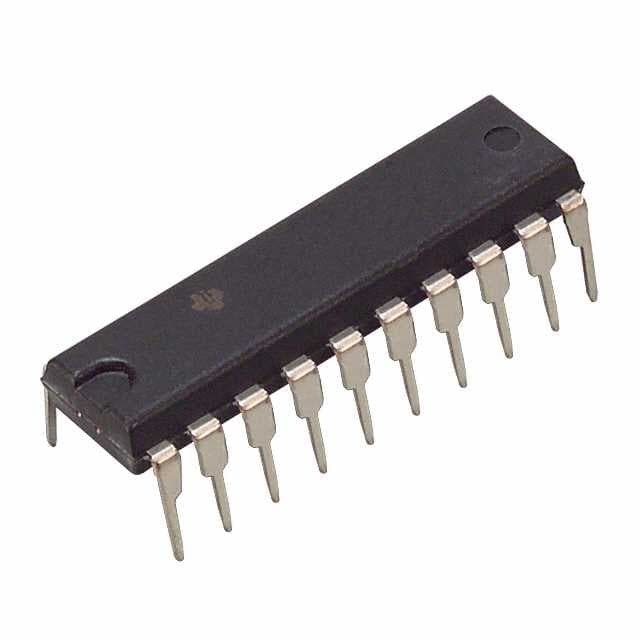

SN74LS688N

SKU: 14622

Manufacturer: onsemi

Identity Comparator 8-Bit Totem-Pole Inverting 20-Pin PDIP Box

1000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Identity Comparator
Logic Family	LS
Number of Bits	8
Polarity	Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	23@5V
Absolute Propagation Delay Time (ns)	23
Process Technology	Bipolar
Output Function	A=B
Output Type	Totem-Pole
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-0.4
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Propagation Delay Test Condition (pF)	45
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Box
Original Package	PDIP
Pin Count	20
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	27.17(Max)
Package Width	6.6(Max)
PCB changed	20
