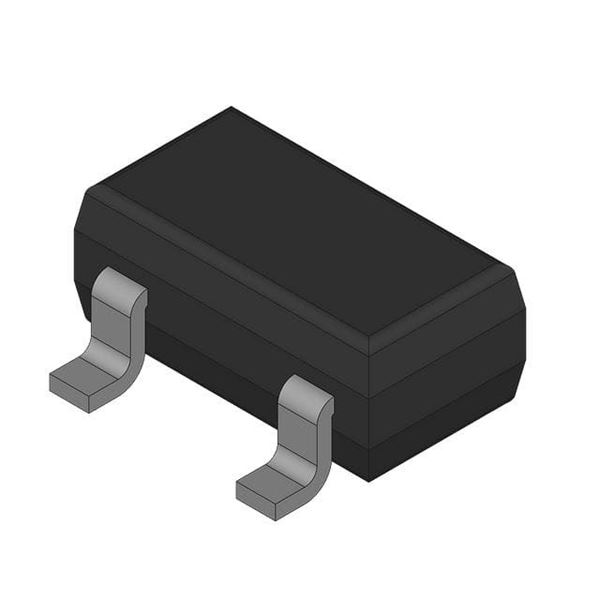

SMSD602-RT1G

SKU: 42878

Manufacturer: onsemi

Trans GP BJT NPN 50V 0.5A 200mW Automotive 3-Pin SC-59 T/R

2060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Type	NPN
Product Category	Bipolar Small Signal
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	60
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	7
Maximum Collector-Emitter Saturation Voltage (V)	0.6@30mA@300mA
Maximum DC Collector Current (A)	0.5
Minimum DC Current Gain	120@150mA@10V
Maximum Power Dissipation (mW)	200
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	SC-59
Pin Count	3
Standard Package Method	SC
Terminal Form	Surface Mount
Package Height	1.09
Package Length	2.9
Package Width	1.5
PCB changed	3
