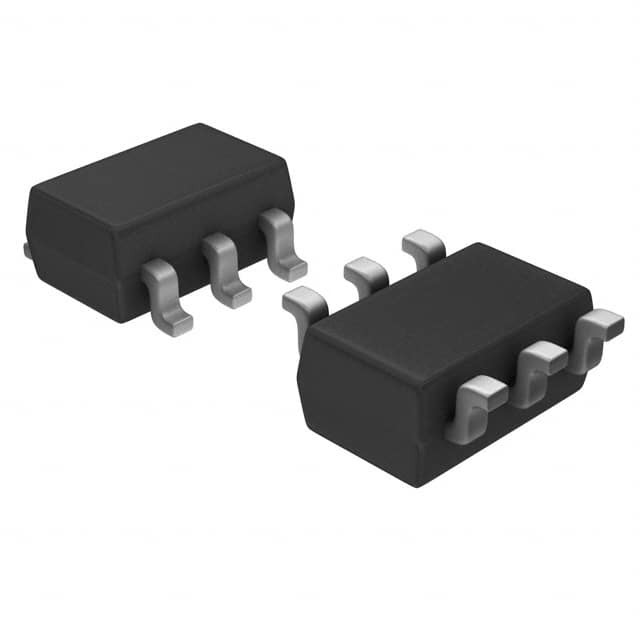

SI3443DV

SKU: 148767

Manufacturer: onsemi

Trans MOSFET P-CH 20V 4A 6-Pin TSOT-23 T/R

9570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	TMOS
Configuration	Single Quad Drain
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±8
Maximum Continuous Drain Current (A)	4
Maximum Drain Source Resistance (mOhm)	65@4.5V
Typical Gate Charge @ Vgs (nC)	7.2@4.5V
Typical Input Capacitance @ Vds (pF)	640@10V
Maximum Power Dissipation (mW)	1600
Typical Fall Time (ns)	35
Typical Rise Time (ns)	19
Typical Turn-Off Delay Time (ns)	26
Typical Turn-On Delay Time (ns)	11
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	SOT
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.85
Package Length	2.9
Package Width	1.6
PCB changed	6
