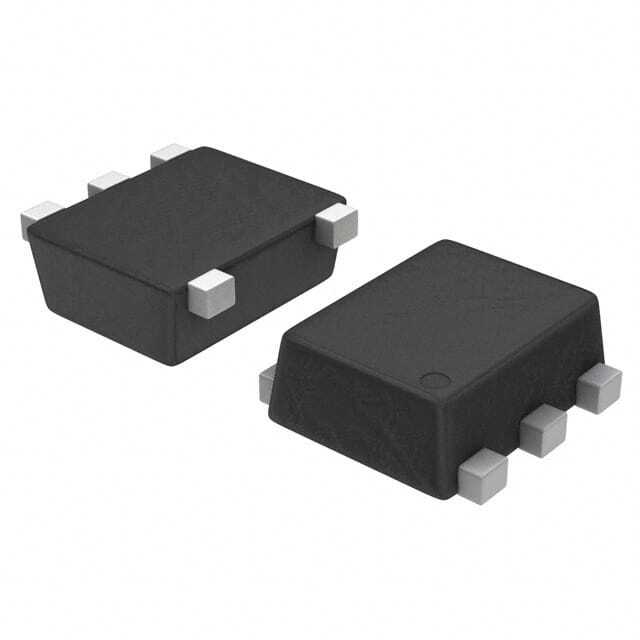

SBS822-TL-W

SKU: 45160

Manufacturer: onsemi

Rectifier Diode Schottky 20V 1A 10ns 5-Pin MCPH T/R

3800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Schottky Diode
Maximum DC Reverse Voltage (V)	20(Min)
Configuration	Dual Parallel
Peak Reverse Repetitive Voltage (V)	20
Maximum Continuous Forward Current (A)	1
Peak Non-Repetitive Surge Current (A)	5
Peak Forward Voltage (V)	0.46
Peak Reverse Current (uA)	110
Maximum Junction Ambient Thermal Resistance	130°C/W(Typ)
Maximum Diode Capacitance (pF)	19(Typ)
Peak Reverse Recovery Time (ns)	10
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	MCPH
Pin Count	5
Standard Package Method	SC-88
Terminal Form	Surface Mount
Package Height	0.88(Max)
Package Length	2
Package Width	1.6
PCB changed	5
