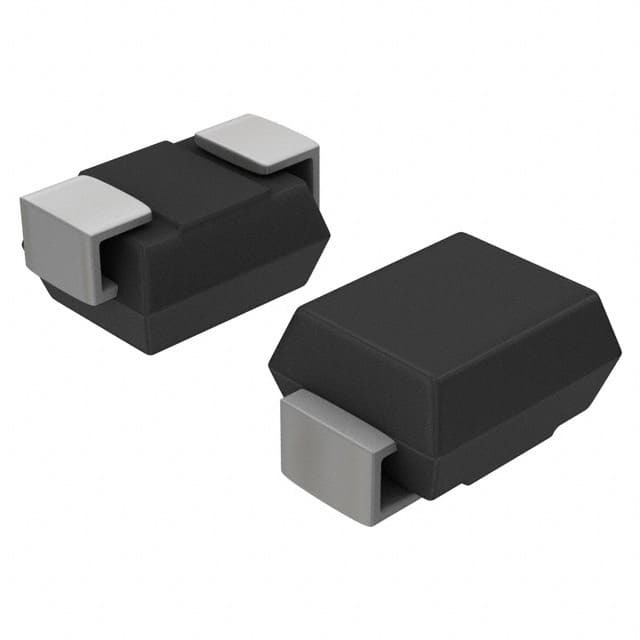

SBRS8190T3G

SKU: 134518

Manufacturer: onsemi

Rectifier Diode Schottky Si 90V 2A Automotive 2-Pin SMB T/R

5750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Yes
Type	Schottky Diode
Body Material	Si
Maximum DC Reverse Voltage (V)	90
Configuration	Single
Peak Reverse Repetitive Voltage (V)	90
Maximum Continuous Forward Current (A)	2
Peak Non-Repetitive Surge Current (A)	50
Peak Forward Voltage (V)	0.75@1A
Peak Reverse Current (uA)	500
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Pin Count	2
Standard Package Method	DO-214-AA
Original Package	SMB
Terminal Form	Surface Mount
Package Height	2.2
Package Length	4.32
Package Width	3.56
PCB changed	2
