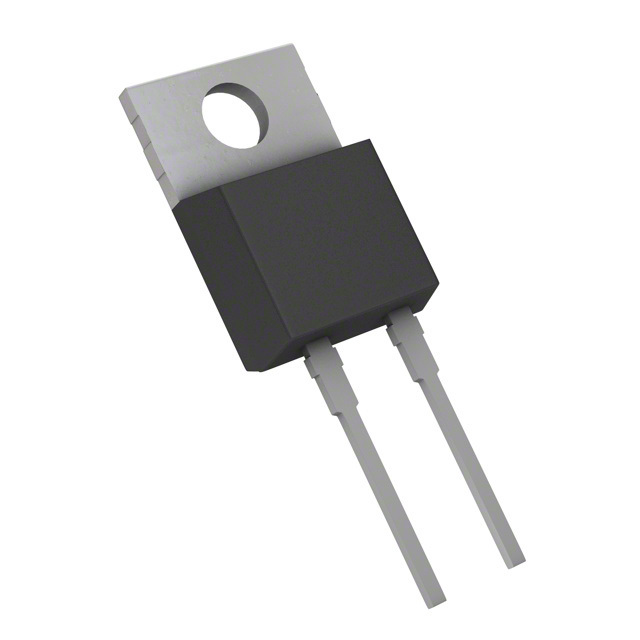

RHRP15120

SKU: 35311

Manufacturer: onsemi

Rectifier Diode Switching 1.2KV 15A 75ns 2-Pin(2+Tab) TO-220 Tube

18590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	1200
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1200
Maximum Continuous Forward Current (A)	15
Peak Non-Repetitive Surge Current (A)	200
Peak Forward Voltage (V)	3.2
Peak Reverse Current (uA)	100
Maximum Power Dissipation (mW)	100000
Peak Reverse Recovery Time (ns)	75
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tube
Pin Count	2
Standard Package Method	TO-220
Original Package	TO-220
Terminal Form	Through Hole
Package Height	8.79(Max)
Package Length	10.36(Max)
Package Width	4.67(Max)
PCB changed	2
Tab	Tab
