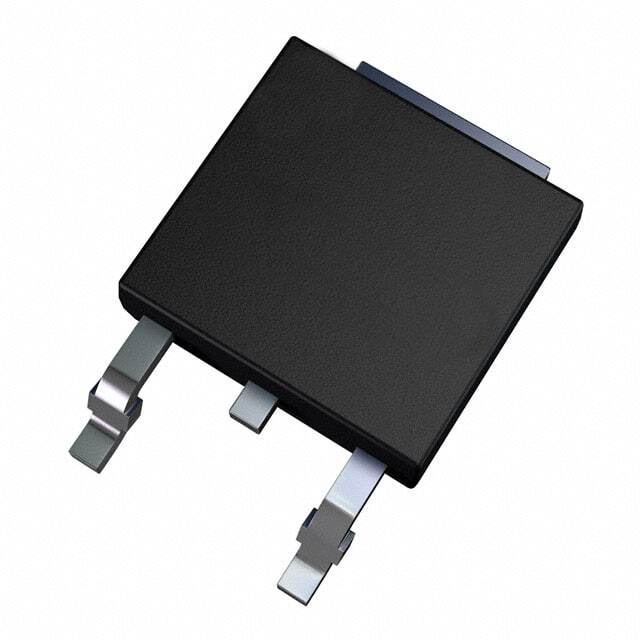

    RFD16N05LSM

    SKU: 49614
    Manufacturer: onsemi
    Trans MOSFET N-CH Si 50V 16A Automotive 3-Pin(2+Tab) DPAK Rail
    5460 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8541.29.00.95
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive Unknown
    PPAP Unknown
    Product Category Power MOSFET
    Body Material Si
    Configuration Single
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 50
    Maximum Gate Source Voltage (V) ±10
    Maximum Continuous Drain Current (A) 16
    Maximum Drain Source Resistance (mOhm) 47@5V
    Typical Gate Charge @ Vgs (nC) 80(Max)@10V
    Typical Gate Charge @ 10V (nC) 80(Max)
    Typical Input Capacitance @ Vds (pF) 1200@7.5V
    Maximum Power Dissipation (mW) 60000
    Typical Fall Time (ns) 14
    Typical Rise Time (ns) 30
    Typical Turn-Off Delay Time (ns) 42
    Typical Turn-On Delay Time (ns) 14
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Packing Method Rail
    Original Package DPAK
    Pin Count 3
    Standard Package Method TO-252
    Terminal Form Surface Mount
    Package Height 2.39(Max)
    Package Length 6.73(Max)
    Package Width 6.22(Max)
    PCB changed 2
