RFD14N05LSM

SKU: 155705

Manufacturer: onsemi

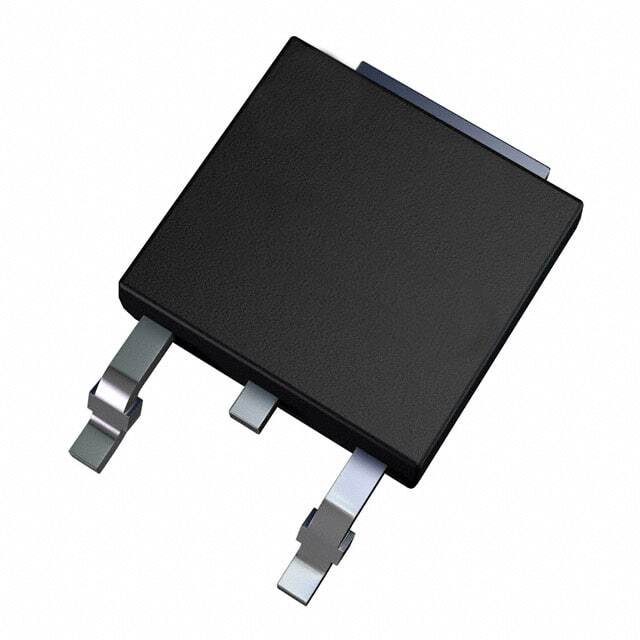

Trans MOSFET N-CH Si 50V 14A 3-Pin(2+Tab) DPAK Tube

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Process Technology	MegaFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	50
Maximum Gate Source Voltage (V)	±10
Maximum Gate Threshold Voltage (V)	2
Maximum Continuous Drain Current (A)	14
Maximum Drain Source Resistance (mOhm)	100@5V
Typical Gate Charge @ Vgs (nC)	25(Max)@5V
Typical Gate Charge @ 10V (nC)	40(Max)
Typical Input Capacitance @ Vds (pF)	670@25V
Typical Output Capacitance (pF)	185
Maximum Power Dissipation (mW)	48000
Typical Fall Time (ns)	16
Typical Rise Time (ns)	24
Typical Turn-Off Delay Time (ns)	42
Typical Turn-On Delay Time (ns)	13
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-252
Original Package	DPAK
Terminal Form	Surface Mount
Package Height	2.39(Max)
Package Length	6.73(Max)
Package Width	6.22(Max)
PCB changed	2
Tab	Tab
