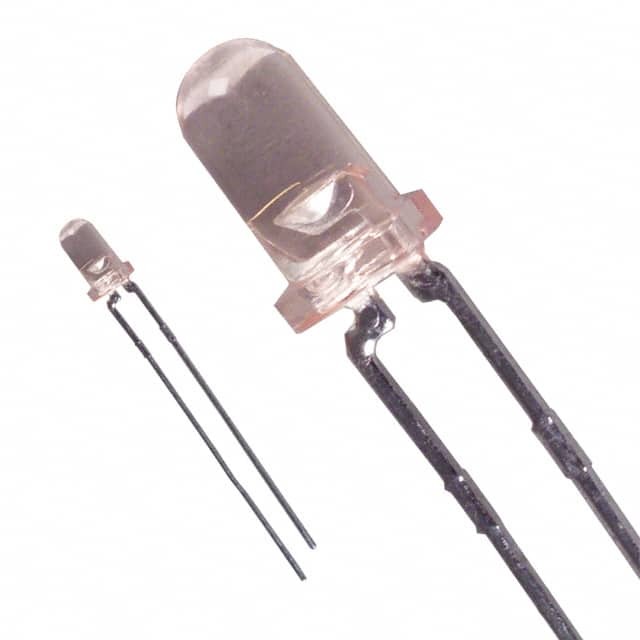

QEC113

SKU: 120183

Manufacturer: onsemi

Infrared Emitter 940nm 40mW/sr Circular Top Mount 2-Pin T-1 Bulk

2110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.40.20.00
Automotive	No
PPAP	No
Peak Wavelength (nm)	940
LED Body Material	GaAs
Lens Dimensions (mm)	2.95x2.95x4.9
Intensity	40mW/sr
Viewing Angle (°)	18
Maximum Forward Voltage (V)	1.5
Reverse Voltage (V)	5
Maximum Forward Current (mA)	50
Maximum Reverse Current (uA)	10
Test Current (mA)	100
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Bulk
High Brightness	No
High Power	No
Lens Shape Type	Circular
Mounting Orientation	Top Mount
Original Package	T-1
Pin Count	2
Standard Package Method	T-1
Diameter	3.94
Terminal Form	Through Hole
Package Height	5.66
PCB changed	2
