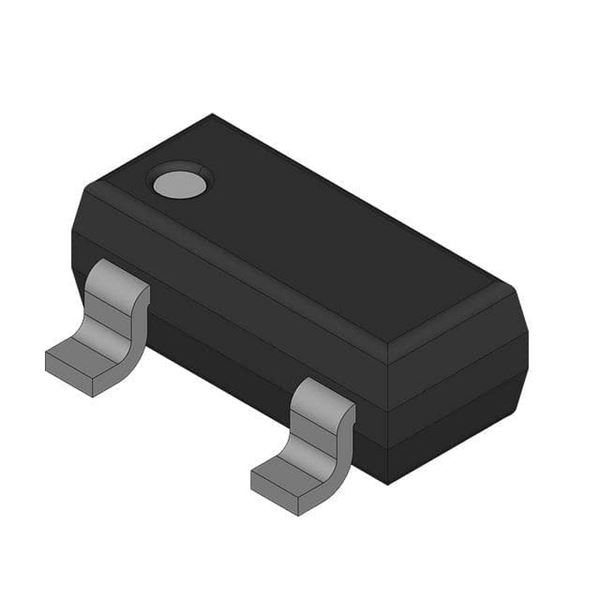

NTR2101PT1G

SKU: 49244

Manufacturer: onsemi

Trans MOSFET P-CH 8V 3.7A 3-Pin SOT-23 T/R

626660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Process Technology	TMOS
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	8
Maximum Gate Source Voltage (V)	±8
Maximum Continuous Drain Current (A)	3.7
Maximum Drain Source Resistance (mOhm)	52@4.5V
Typical Gate Charge @ Vgs (nC)	12@4.5V
Typical Input Capacitance @ Vds (pF)	1173@4V
Maximum Power Dissipation (mW)	960
Typical Fall Time (ns)	31
Typical Rise Time (ns)	15.75
Typical Turn-Off Delay Time (ns)	38
Typical Turn-On Delay Time (ns)	7.4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	0.94
Package Length	2.9
Package Width	1.3
PCB changed	3
