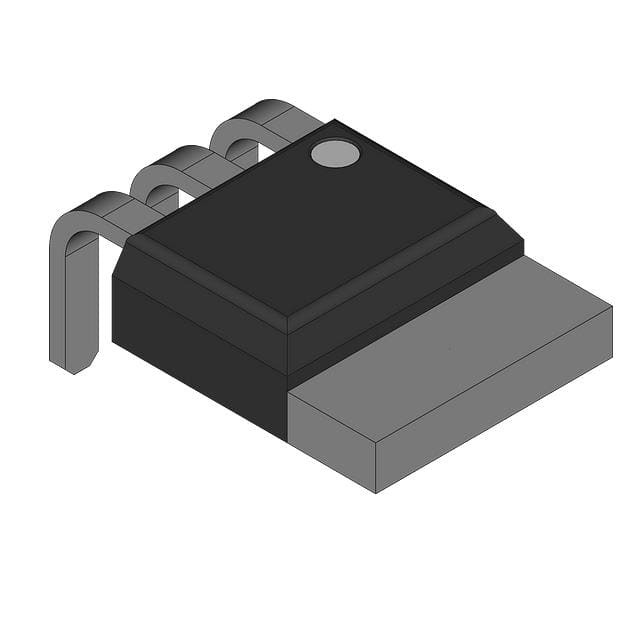

NTD4904N-35G

SKU: 27904

Manufacturer: onsemi

Trans MOSFET N-CH 30V 17.8A 3-Pin(3+Tab) IPAK Tube

3030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	17.8
Maximum Drain Source Resistance (mOhm)	3.7@10V
Typical Gate Charge @ Vgs (nC)	16.8@4.5V
Typical Gate Charge @ 10V (nC)	41
Typical Input Capacitance @ Vds (pF)	3052@15V
Maximum Power Dissipation (mW)	2600
Typical Fall Time (ns)	7.5
Typical Rise Time (ns)	19.8
Typical Turn-Off Delay Time (ns)	23.4
Typical Turn-On Delay Time (ns)	15.3
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-251
Original Package	IPAK
Terminal Form	Through Hole
Package Height	6.22(Max)
Package Length	6.73(Max)
Package Width	2.38(Max)
PCB changed	3
