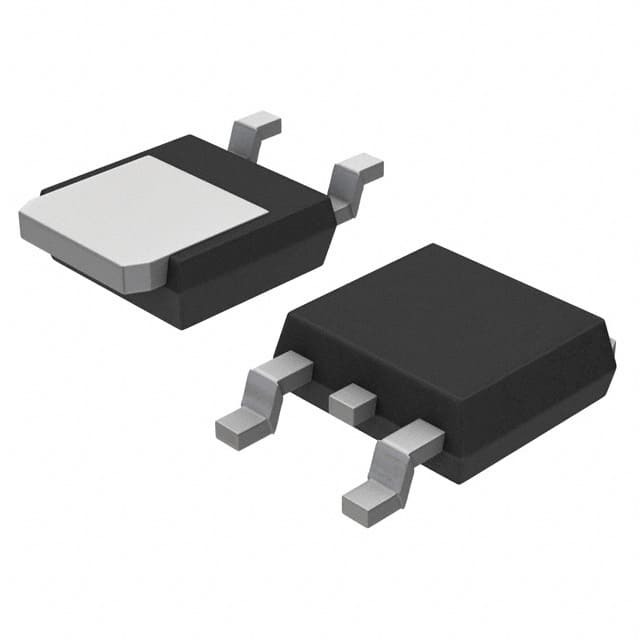

NTD4302

SKU: 126898

Manufacturer: onsemi

Trans MOSFET N-CH 30V 11.3A 3-Pin(2+Tab) DPAK Tube

8720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	11.3
Maximum Drain Source Resistance (mOhm)	10@10V
Typical Gate Charge @ Vgs (nC)	55@10V
Typical Gate Charge @ 10V (nC)	55
Typical Input Capacitance @ Vds (pF)	2050@24V
Maximum Power Dissipation (mW)	1870
Typical Fall Time (ns)	55
Typical Rise Time (ns)	15
Typical Turn-Off Delay Time (ns)	85
Typical Turn-On Delay Time (ns)	11
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-252
Original Package	DPAK
Terminal Form	Surface Mount
Package Height	2.38(Max)
Package Length	6.73(Max)
Package Width	6.22(Max)
PCB changed	2
Tab	Tab
