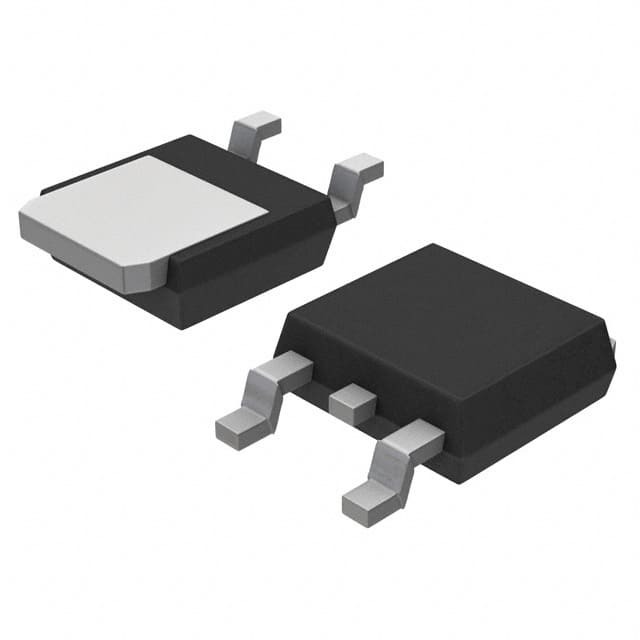

NSV1C300ET4G-VF01

SKU: 27896

Manufacturer: onsemi

Trans GP BJT PNP 100V 3A 2100mW Automotive 3-Pin(2+Tab) DPAK T/R

1160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Yes
Type	PNP
Product Category	Bipolar Power
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	140
Collector-Emitter Voltage-Max (V)	100
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	1@0.1A@1A
Maximum Collector-Emitter Saturation Voltage (V)	0.07@10mA@0.1A
Maximum DC Collector Current (A)	3
Minimum DC Current Gain	180@0.1A@2V
Maximum Power Dissipation (mW)	2100
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	DPAK
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.38(Max)
Package Length	6.73(Max)
Package Width	6.22(Max)
PCB changed	2
Tab	Tab
