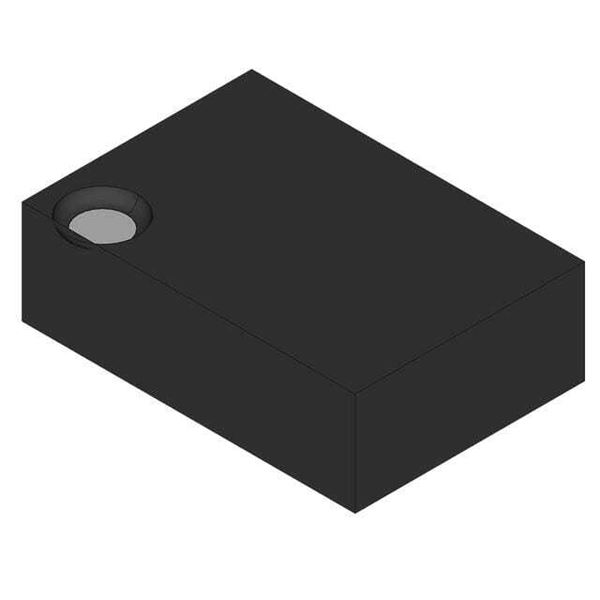

NLX1G97BMX1TCG

SKU: 37922

Manufacturer: onsemi

Multi Function Gate 1-Element 2-IN CMOS 6-Pin ULLGA T/R

1130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Logic Function	Multi Function
Number of Elements per pcs	1
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	1
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	6.3@3V to 3.6V
Absolute Propagation Delay Time (ns)	14.4
Process Technology	CMOS
Input Type	Schmitt Trigger
Maximum Low Level Output Current (mA)	32
Maximum High Level Output Current (mA)	-32
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	1
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	ULLGA
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.35(Max)
Package Length	1.2
Package Width	1
