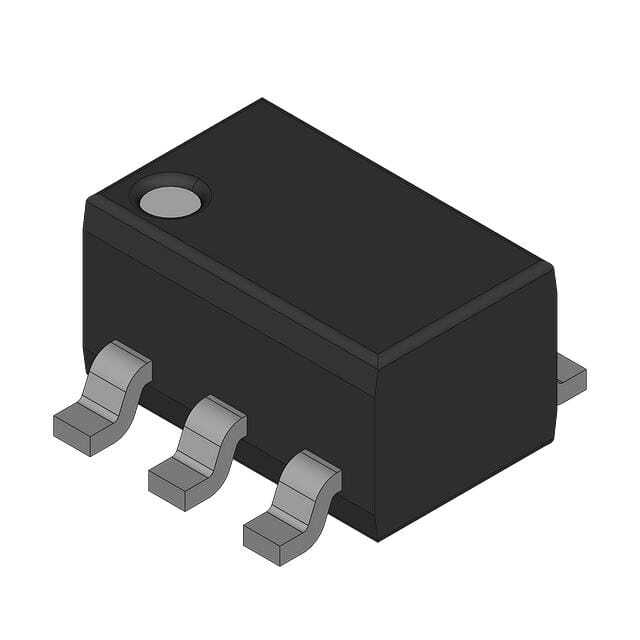

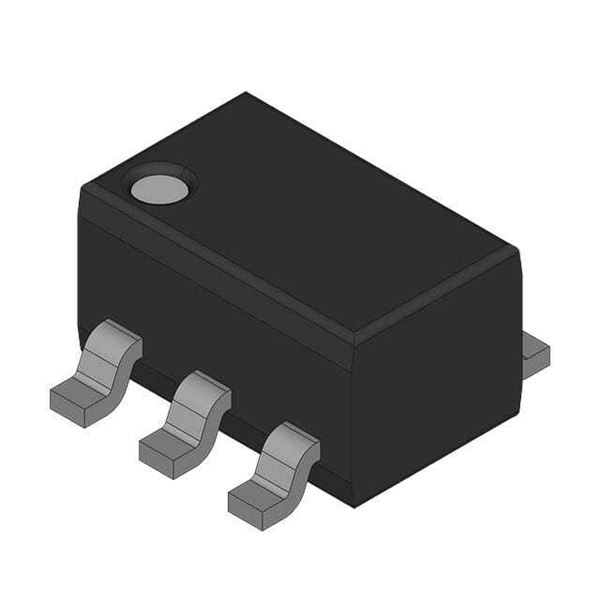

NL27WZ07DFT2

SKU: 98494

Manufacturer: onsemi

Buffer/Driver 2-CH Non-Inverting Open Drain CMOS Automotive 6-Pin SC-88 T/R

40690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Logic Family	LCX
Logic Function	Buffer/Driver
Number of Elements per pcs	2
Number of Channels per Chip	2
Number of Inputs per Chip	2
Number of Input Enables per Chip	0
Number of Outputs per Chip	2
Number of Output Enables per Chip	0
Bus Hold	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	5.8@2.5V
Absolute Propagation Delay Time (ns)	12
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	Open Drain
Maximum Low Level Output Current (mA)	32
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	1
Propagation Delay Test Condition (pF)	50
Maximum Power Dissipation (mW)	200
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	SC
Original Package	SC-88
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
