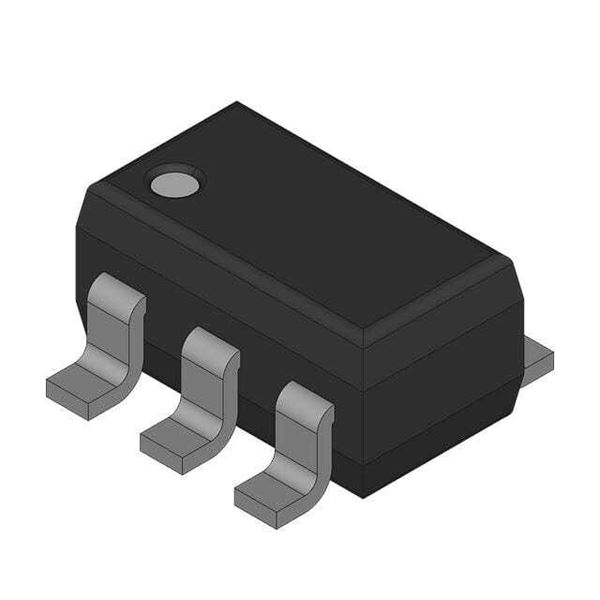

    NL27WZ04DTT1

    SKU: 158246
    Manufacturer: onsemi
    Inverter 2-Element CMOS Automotive 6-Pin TSOP T/R
    Download sample
    Request Free Samples
    270 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Not Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8542.39.00.01
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive Unknown
    PPAP Unknown
    Logic Family LCX
    Logic Function Inverter
    Number of Elements per pcs 2
    Maximum Propagation Delay Time @ Maximum CL (ns) 4.5@3.3V
    Absolute Propagation Delay Time (ns) 11
    Process Technology CMOS
    Output Type Push-Pull
    Maximum Low Level Output Current (mA) 32
    Maximum High Level Output Current (mA) -32
    Operating Supply Voltage-Min (V) 1.65
    Typical Operating Supply Voltage (V) 1.8
    Operating Supply Voltage-Max (V) 5.5
    Maximum Quiescent Current (uA) 1
    Propagation Delay Test Condition (pF) 50
    Operating Temperature-Min -55
    Operating Temperature-Max 125
    Packing Method Tape and Reel
    Pin Count 6
    Original Package TSOP
    Standard Package Method SOP
    Terminal Form Surface Mount
    Package Height 0.94
    Package Length 3
    Package Width 1.5
    PCB changed 6
