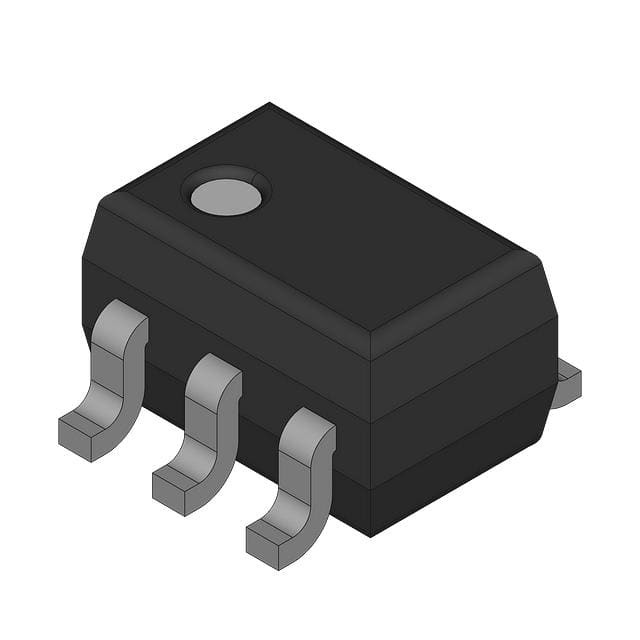

NL17SZ32DFT2

SKU: 84423

Manufacturer: onsemi

OR Gate 1-Element 2-IN CMOS Automotive 5-Pin SC-88A T/R

4330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Logic Family	LCX
Logic Function	OR
Number of Elements per pcs	1
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	0
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	5.2@3.3V
Absolute Propagation Delay Time (ns)	12.7
Process Technology	CMOS
Maximum Low Level Output Current (mA)	32
Maximum High Level Output Current (mA)	-32
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	1
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	SC
Pin Count	5
Original Package	SC-88A
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.2(Max)
Package Width	1.35(Max)
PCB changed	5
