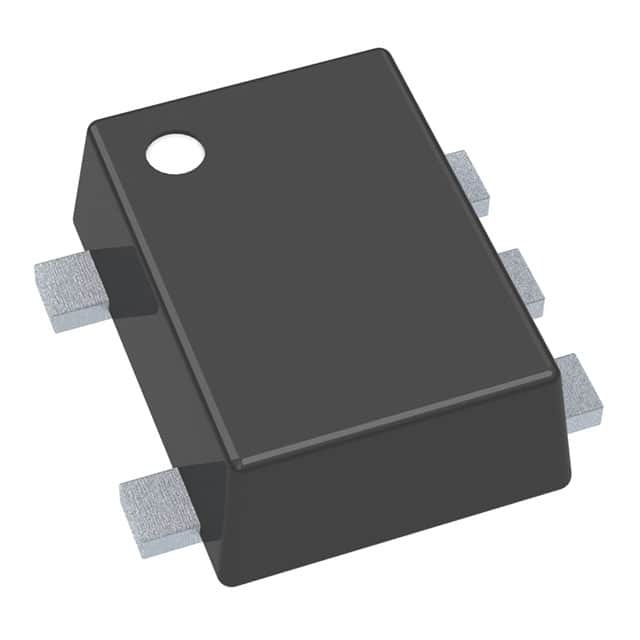

    NL17SV04XV5T2

    SKU: 16667
    Manufacturer: onsemi
    Inverter 1-Element CMOS 5-Pin SOT-553 T/R
    Download sample
    Request Free Samples
    1160 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    Automotive No
    PPAP No
    Logic Family VCX
    Logic Function Inverter
    Number of Elements per pcs 1
    Maximum Propagation Delay Time @ Maximum CL (ns) 2.7@2.3V to 2.7V
    Absolute Propagation Delay Time (ns) 13.9
    Process Technology CMOS
    Maximum Low Level Output Current (mA) 18
    Maximum High Level Output Current (mA) -18
    Operating Supply Voltage-Min (V) 0.9
    Typical Operating Supply Voltage (V) 2.5
    Operating Supply Voltage-Max (V) 3.6
    Maximum Quiescent Current (uA) 0.9
    Propagation Delay Test Condition (pF) 30
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Supplier Temperature Grade Industrial
    Packing Method Tape and Reel
    Pin Count 5
    Original Package SOT-553
    Standard Package Method SOT-553
    Terminal Form Surface Mount
    Package Height 0.55
    Package Length 1.6
    Package Width 1.2
    PCB changed 5
