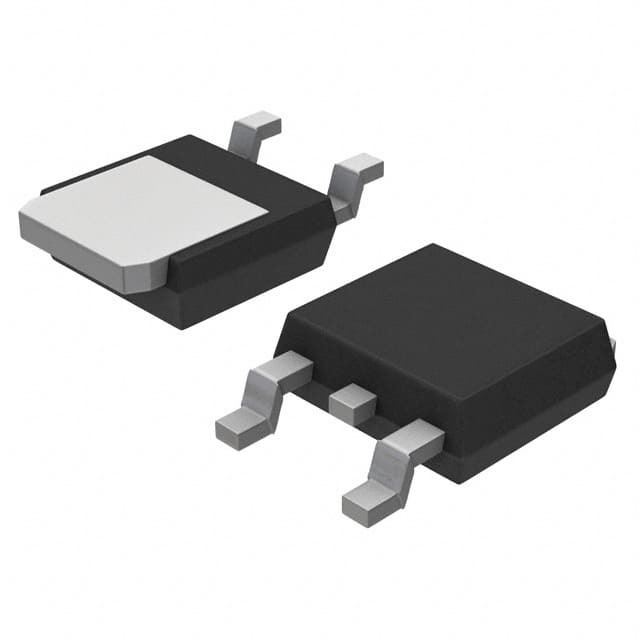

NJVNJD2873T4G

SKU: 119815

Manufacturer: onsemi

Trans GP BJT NPN 50V 2A 1680mW Automotive 3-Pin(2+Tab) DPAK T/R

11300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Yes
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	50
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	1.2@0.05mA@1mA
Maximum Collector-Emitter Saturation Voltage (V)	0.3@0.05mA@1mA
Maximum DC Collector Current (A)	2
Minimum DC Current Gain	40@2A@2V
Maximum Power Dissipation (mW)	1680
Maximum Transition Frequency (MHz)	65(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Pin Count	3
Standard Package Method	TO-252
Original Package	DPAK
Terminal Form	Surface Mount
Package Height	2.38(Max)
Package Length	6.73(Max)
Package Width	6.22(Max)
PCB changed	2
Tab	Tab
