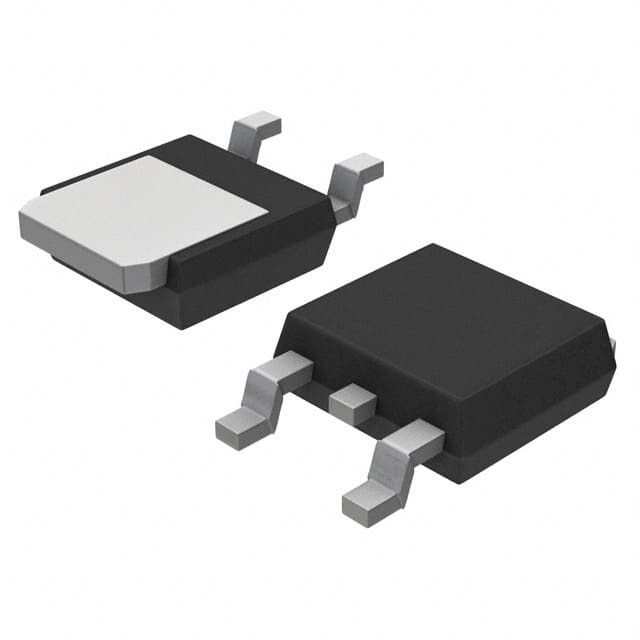

NJVMJD32CT4G

SKU: 119814

Manufacturer: onsemi

Trans GP BJT PNP 100V 3A 1560mW Automotive 3-Pin(2+Tab) DPAK T/R

9000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Yes
Type	PNP
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	100
Collector-Emitter Voltage-Max (V)	100
Maximum Emitter Base Voltage (V)	5
Operating Junction Temperature (°C)	-65 to 150
Maximum Base Current (A)	1
Maximum Collector-Emitter Saturation Voltage (V)	1.2@375mA@3A
Maximum DC Collector Current (A)	3
Minimum DC Current Gain	25@1A@4V
Maximum Power Dissipation (mW)	1560
Maximum Transition Frequency (MHz)	3(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Pin Count	3
Standard Package Method	TO-252
Original Package	DPAK
Terminal Form	Surface Mount
Package Height	2.38(Max)
Package Length	6.73(Max)
Package Width	6.22(Max)
PCB changed	2
Tab	Tab
