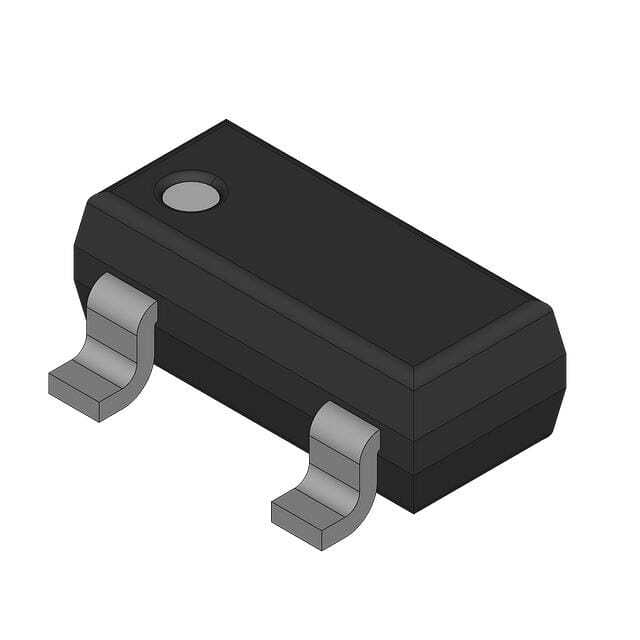

NDS332P

SKU: 91467

Manufacturer: onsemi

Trans MOSFET P-CH 20V 1A 3-Pin SOT-23 T/R

Request Free Samples

211320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	DMOS
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±8
Maximum Gate Threshold Voltage (V)	1
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	1
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	300@4.5V
Typical Gate Charge @ Vgs (nC)	3.7@4.5V
Typical Gate to Drain Charge (nC)	0.9
Typical Gate to Source Charge (nC)	0.5
Typical Input Capacitance @ Vds (pF)	195@10V
Typical Reverse Transfer Capacitance @ Vds (pF)	40@10V
Minimum Gate Threshold Voltage (V)	0.4
Typical Output Capacitance (pF)	105
Maximum Power Dissipation (mW)	500
Typical Fall Time (ns)	27
Typical Rise Time (ns)	30
Typical Turn-Off Delay Time (ns)	25
Typical Turn-On Delay Time (ns)	8
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Power Dissipation on PCB @ TC=25°C (W)	0.5
Maximum Pulsed Drain Current @ TC=25°C (A)	10
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	270
Typical Diode Forward Voltage (V)	0.75
Typical Gate Plateau Voltage (V)	1.6
Maximum Diode Forward Voltage (V)	1.2
Typical Gate Threshold Voltage (V)	0.6
Maximum Positive Gate Source Voltage (V)	8
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	1
Pin Count	3
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	0.94
Package Length	2.92
Package Width	1.4
PCB changed	3
