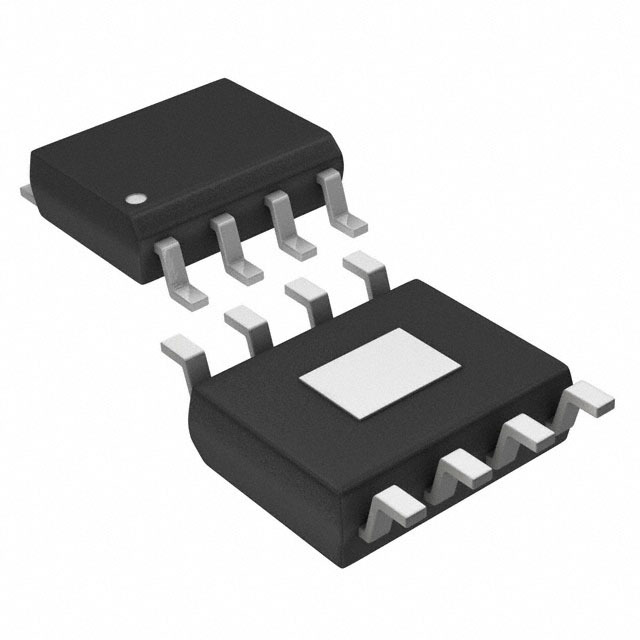

NCV890100PDR2G

SKU: 129824

Manufacturer: onsemi

Conv DC-DC 4.5V to 36V Step Down Single-Out 0.8V 1.2A Automotive 8-Pin SOIC EP T/R

2970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	2200
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8(Min)
Maximum Output Current (A)	1.2(Typ)
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	36
Operating Supply Voltage (V)	4.5 to 36
Typical Quiescent Current (uA)	5(Max)
Maximum ESD Protection Voltage (kV)	1@CDM/2@HBM/0.2@MM
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC EP
Terminal Form	Surface Mount
Package Height	1.65(Max)
Package Length	4.9
Package Width	3.9
PCB changed	8
