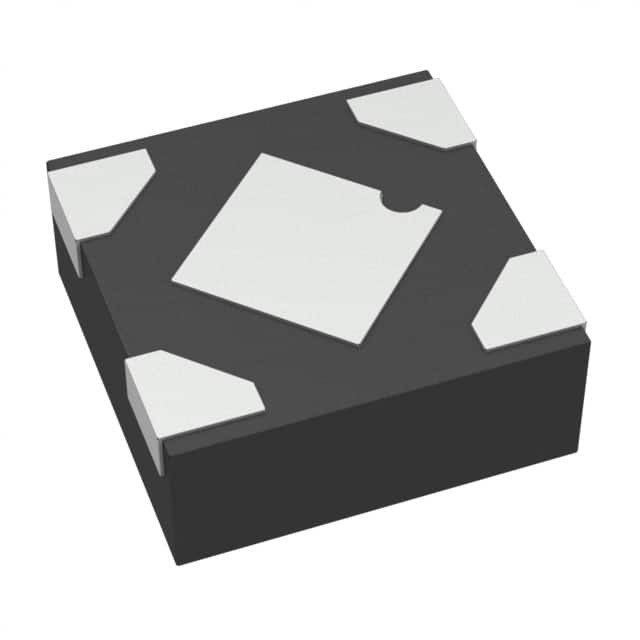

NCV8177AMX120TCG

SKU: 158245

Manufacturer: onsemi

LDO Regulator Pos 1.2V 0.5A Automotive 4-Pin XDFN EP T/R

2360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1.2
Output Type	Fixed
Output Voltage (V)	1.2
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	1.6
Maximum Input Voltage (V)	5.5
Line Regulation	0.02%/V(Typ)
Load Regulation	1mV(Typ)
Maximum Quiescent Current (mA)	0.09
Junction to Ambient	223°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	XDFN EP
Pin Count	4
Terminal Form	Surface Mount
Package Height	0.38(Max)
Package Length	1
Package Width	1
