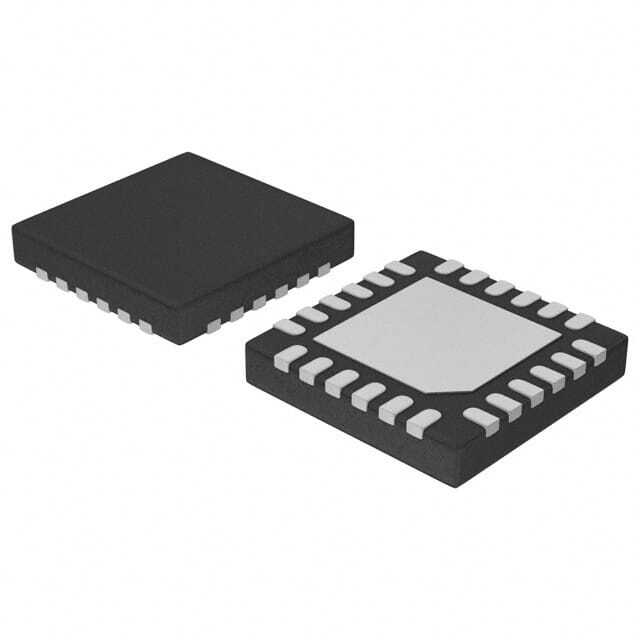

NCP51705MNTXG

SKU: 45025

Manufacturer: onsemi

Driver 5V 1-OUT Low Side Half Brdg Inv/Non-Inv 24-Pin QFN EP T/R

1370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	Low Side
Driver Configuration	Inverting
Bridge Type	Half Bridge
Number of Drivers	1
Type	MOSFET
Number of Outputs	1
Maximum Rise Time (ns)	8(Typ)
Maximum Fall Time (ns)	8(Typ)
Maximum Operating Frequency (kHz)	500
Maximum Propagation Delay Time (ns)	25(Typ)
Input Logic Compatibility	TTL
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	22
Maximum Supply Current (mA)	12(Typ)
Typical Input Low Threshold Voltage (V)	1.2
Typical Input High Threshold Voltage (V)	1.6
Reference Voltage (V)	5
Maximum Power Dissipation (mW)	2900
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Latch-Up Proof	No
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	24
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4
Package Width	4
PCB changed	24
