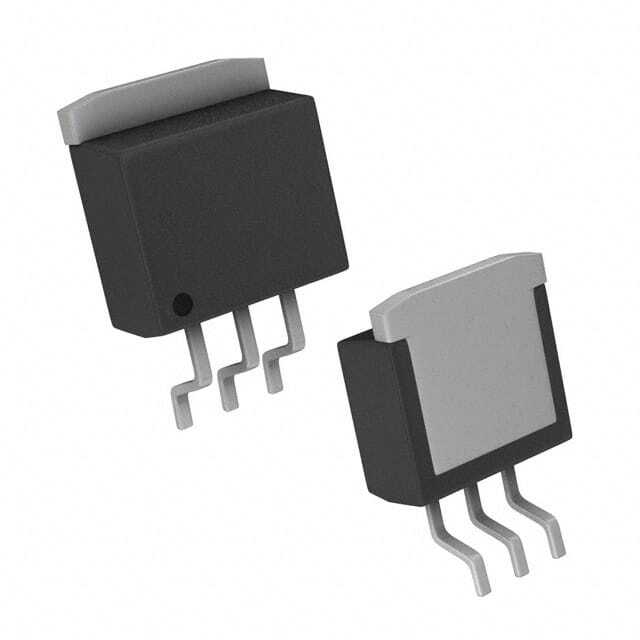

NCP1086D2T-33R4G

SKU: 91460

Manufacturer: onsemi

LDO Regulator Pos 3.3V 1.5A 4-Pin(3+Tab) D2PAK T/R

11350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	1.5
Maximum Input Voltage (V)	7
Maximum Dropout Voltage @ Current (V)	1.4@1500mA
Line Regulation	0.2%
Load Regulation	0.4%
Maximum Quiescent Current (mA)	10
Junction to Ambient	50°C/W
Junction to Case	3.5°C/W
Special Features	Fault Protection
Operating Temperature-Min	-40
Operating Temperature-Max	70
Packing Method	Tape and Reel
Original Package	D2PAK
Pin Count	4
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.57(Max)
Package Length	10.67(Max)
Package Width	9.35(Max)
PCB changed	3
Tab	Tab
