NC7ST86M5 onsemi

NC7ST86M5

SKU: 59269

Manufacturer: onsemi

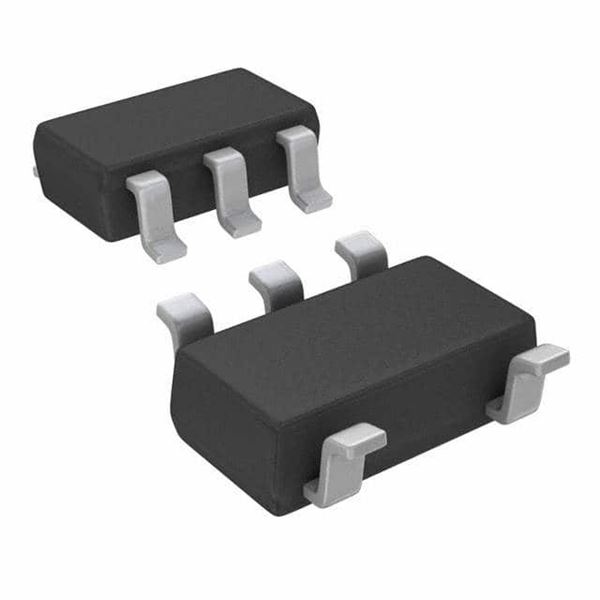

XOR Gate 1-Element 2-IN CMOS 5-Pin SOT-23 T/R

Request Free Samples

920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	TinyLogic HST
Logic Function	XOR
Number of Elements per pcs	1
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	0
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	29@4.5V
Absolute Propagation Delay Time (ns)	33
Process Technology	CMOS
Maximum Low Level Output Current (mA)	2
Maximum High Level Output Current (mA)	-2
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	1
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SOT
Original Package	SOT-23
Pin Count	5
Terminal Form	Surface Mount
Package Height	1.15
Package Length	2.9
Package Width	1.6
PCB changed	5
