NC7S14M5X

SKU: 134011

Manufacturer: onsemi

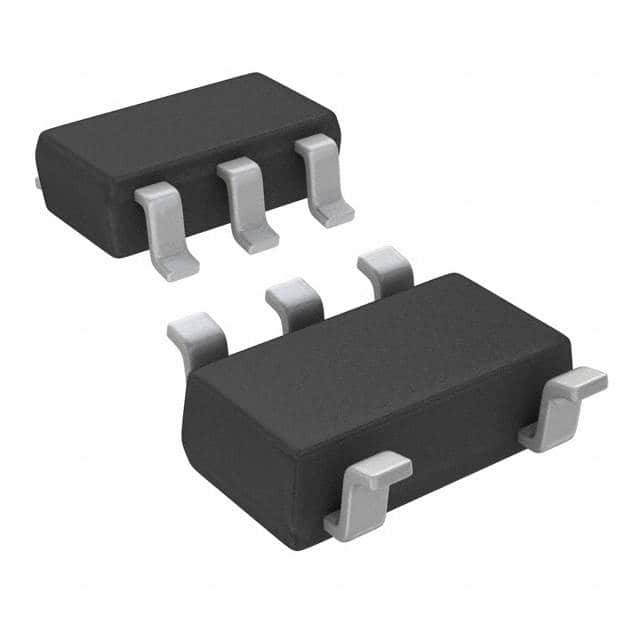

Inverter Schmitt Trigger 1-Element CMOS 5-Pin SC-74A T/R

46800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	TinyLogic HS
Logic Function	Inverter Schmitt Trigger
Number of Elements per pcs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	20@4.5V
Absolute Propagation Delay Time (ns)	125
Process Technology	CMOS
Output Type	Schmitt Trigger
Maximum Low Level Output Current (mA)	2.6
Maximum High Level Output Current (mA)	-2.6
Minimum High Level Output Voltage (V)	1.9
Maximum Low Level Output Voltage (V)	0.26
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	6
Maximum Quiescent Current (uA)	1
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	5
Original Package	SC-74A
Standard Package Method	SC
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	3.15(Max)
Package Width	1.65(Max)
PCB changed	5
