NBSG86AMN

SKU: 37915

Manufacturer: onsemi

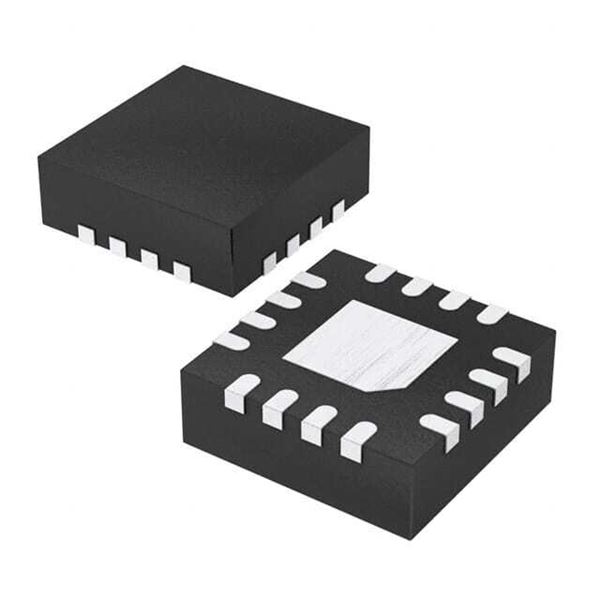

Multi Function Gate 1-Element 2-IN 16-Pin QFN EP Tube

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	ECL
Logic Function	Multi Function
Number of Elements per pcs	1
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	2
Number of Element Outputs	2
Maximum Propagation Delay Time @ Maximum CL (ns)	0.215@2.375V to 3.465V
Absolute Propagation Delay Time (ns)	0.22
Maximum Low Level Output Current (mA)	25
Maximum High Level Output Current (mA)	-25
Operating Supply Voltage-Min (V)	-2.375
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	-3.465
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Standard Package Method	QFN
Pin Count	16
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.87
Package Length	3
Package Width	3
