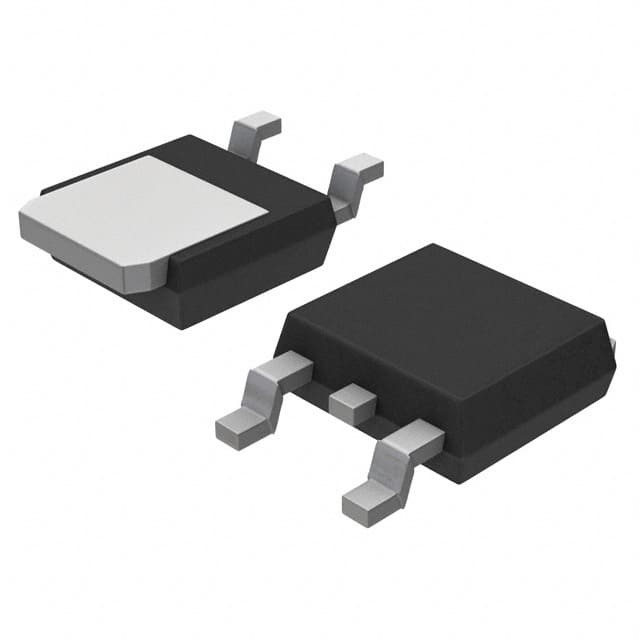

MURD320T4

SKU: 141090

Manufacturer: onsemi

Rectifier Diode Switching 200V 3A 35ns 3-Pin(2+Tab) DPAK T/R

1720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	200
Configuration	Single Dual Anode
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	3
Peak Non-Repetitive Surge Current (A)	75
Peak Forward Voltage (V)	0.95
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	35
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	TO-252
Original Package	DPAK
Terminal Form	Surface Mount
Package Height	2.38(Max)
Package Length	6.73(Max)
Package Width	6.22(Max)
PCB changed	2
Tab	Tab
