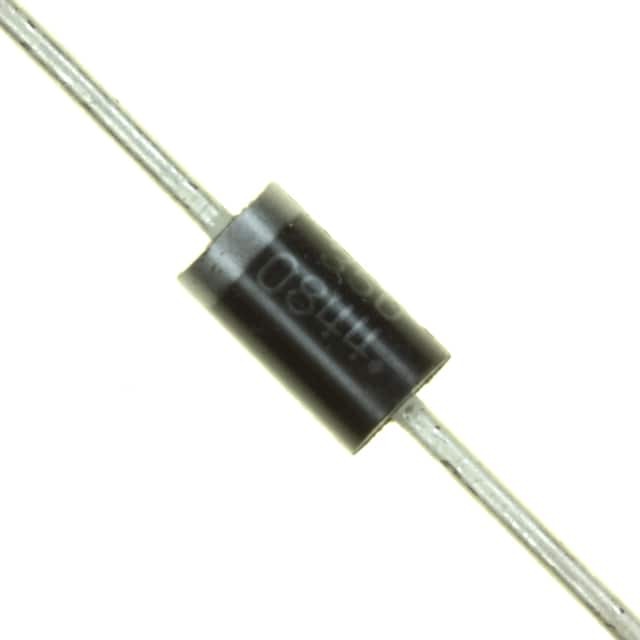

MUR4100E

SKU: 148149

Manufacturer: onsemi

Rectifier Diode Switching 1KV 4A 100ns 2-Pin DO-201AD Box

1900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	1000
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1000
Maximum Continuous Forward Current (A)	4@Ta=35C
Peak Non-Repetitive Surge Current (A)	70
Peak Forward Voltage (V)	1.85
Peak Reverse Current (uA)	25
Maximum Junction Ambient Thermal Resistance	0.63°C/W(Typ)
Peak Reverse Recovery Time (ns)	100
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Box
Original Package	DO-201AD
Pin Count	2
Standard Package Method	DO-201-AD
Diameter	5.3(Max)
Terminal Form	Through Hole
Package Length	9.5(Max)
PCB changed	2
