MUR3060WT

SKU: 133993

Manufacturer: onsemi

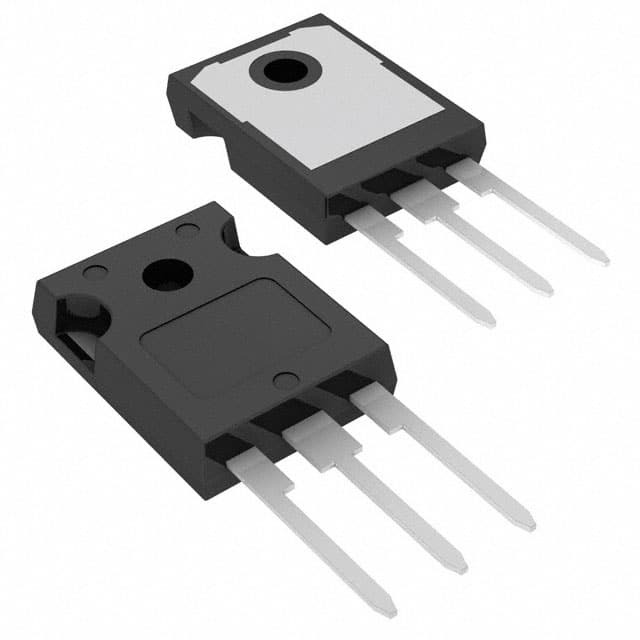

Rectifier Diode Switching 600V 30A 60ns 3-Pin(3+Tab) TO-247 Tube

2800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	600
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	600
Maximum Continuous Forward Current (A)	30
Peak Non-Repetitive Surge Current (A)	150
Peak Forward Voltage (V)	1.7@15A
Peak Reverse Current (uA)	10
Peak Reverse Recovery Time (ns)	60
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-247
Original Package	TO-247
Terminal Form	Through Hole
Package Height	21.08(Max)
Package Length	16.26(Max)
Package Width	5.3(Max)
PCB changed	3
Tab	Tab
