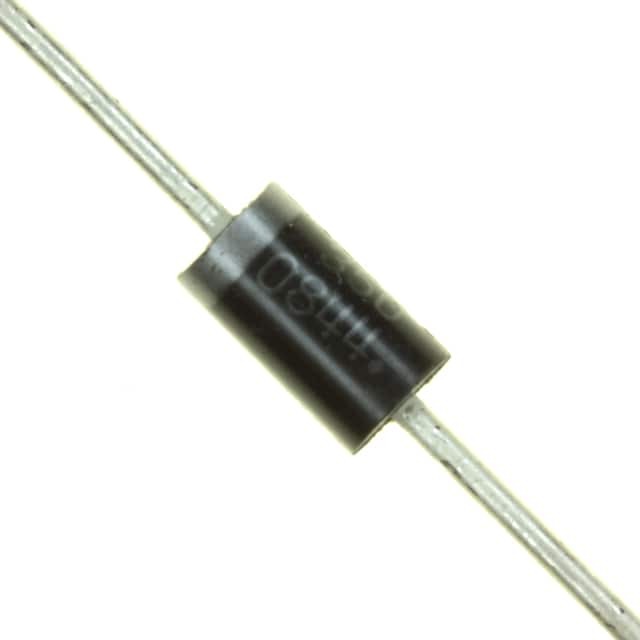

MR851

SKU: 56277

Manufacturer: onsemi

Rectifier Diode Switching 100V 3A 300ns 2-Pin DO-201AD Box

2090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	100
Configuration	Single
Peak Reverse Repetitive Voltage (V)	100
Maximum Continuous Forward Current (A)	3@Ta=80C
Peak Non-Repetitive Surge Current (A)	100
Peak Forward Voltage (V)	1.25
Peak Reverse Current (uA)	10
Maximum Junction Ambient Thermal Resistance	28°C/W
Peak Reverse Recovery Time (ns)	300
Operating Temperature-Min	-65
Operating Temperature-Max	125
Packing Method	Box
Maximum RMS Reverse Voltage (V)	70
Original Package	DO-201AD
Pin Count	2
Standard Package Method	DO-201-AD
Diameter	5.3(Max)
Terminal Form	Through Hole
Package Length	9.5(Max)
PCB changed	2
