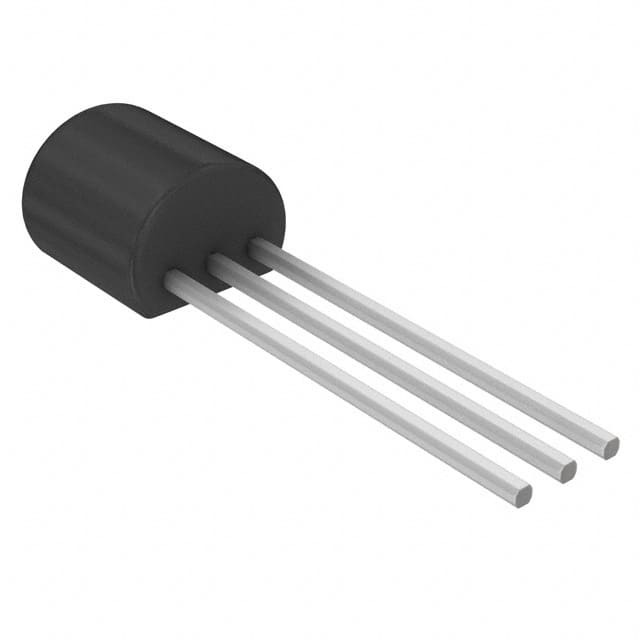

MPSA27

SKU: 41974

Manufacturer: onsemi

Trans Darlington NPN 60V 0.8A 625mW 3-Pin TO-92 Box

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Configuration	Single
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	60
Collector Base Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	10
Maximum Continuous DC Collector Current (A)	0.8
Maximum Collector Cut-Off Current (uA)	0.1
Maximum Collector-Emitter Saturation Voltage (V)	1.5@0.1mA@100mA
Minimum DC Current Gain	10000@100mA@5V
Maximum Power Dissipation (mW)	625
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Box
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	5.33(Max)
Package Length	5.2(Max)
Package Width	4.19(Max)
PCB changed	3
